CURT Universal Weld-On Trailer Hitch #15902

$374.80

Add to Wishlist Browse Wishlist
SKU: 612314159024 Category:

Description

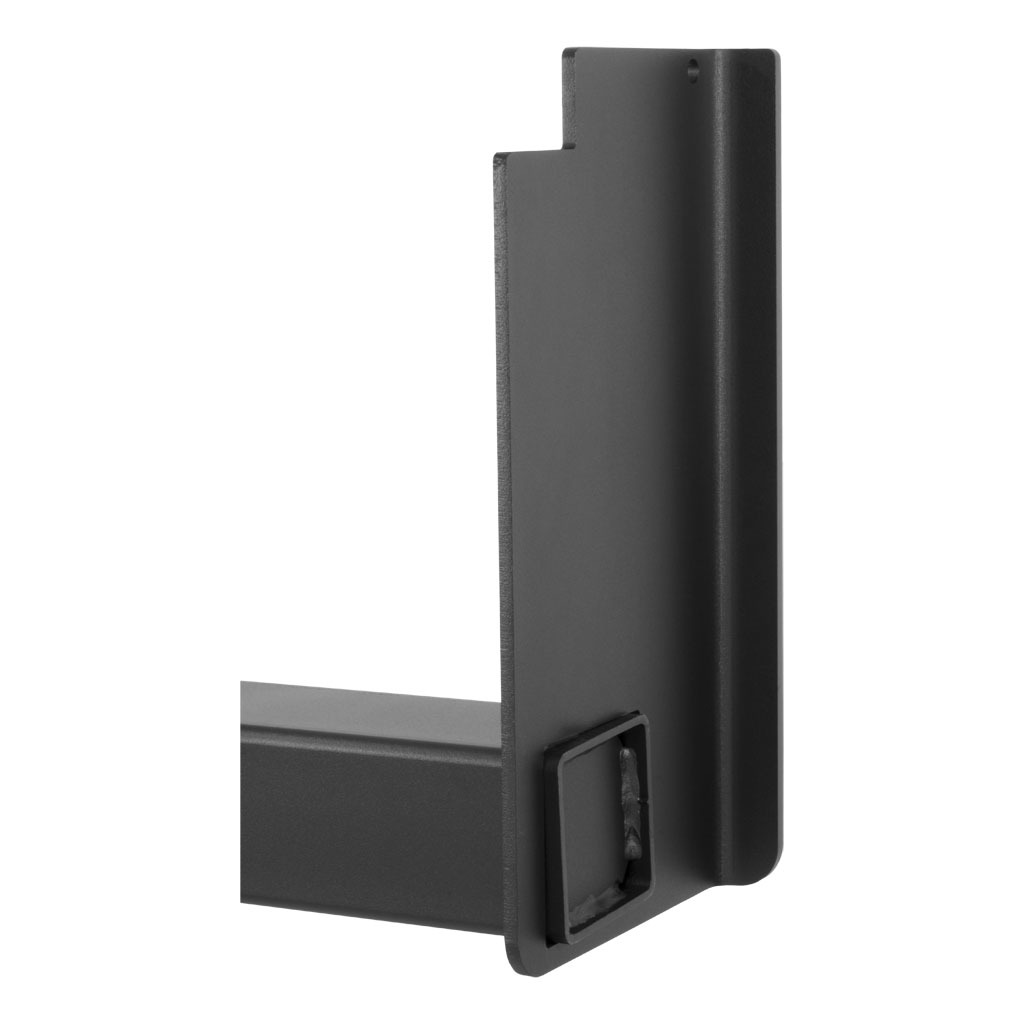

A CURT weld-on trailer hitch is a unique towing option for your vehicle. As the name suggests, a weld-on hitch is designed to be welded directly onto the frame, using its thick side plates. While the installation of a weld-on hitch is far different from that of CURT custom hitches, weld-on hitches offer a high weight carrying capacity and a reliable towing solution when installed properly. They also come in a three-piece design: a main body and two attachable side plates that allow the hitch to fit multiple vehicle frames.

Having a weight rating comparable to a class 5 trailer hitch, weld-on hitches work well on 1/2-ton, 3/4-ton and 1-ton pickup trucks and SUVs, and they are excellent for towing a variety of heavy-duty trailers, such as toy haulers, dump trailers, logging trailers, gravity boxes and small yacht trailers (NOTE: Never exceed the lowest weight capacity of any towing component). This particular weld-on hitch features a gross trailer weight capacity of 15,000 lbs., a tongue weight rating of 1,500 lbs. and a 2″ x 2″ receiver tube opening. It comes with a scratch-resistant and rust-resistant black carbide powder coat and requires no hardware for installation. It is able to fit a frame between 18″ and 43″ wide.

Details

Product Type Description: Weld-On Trailer Hitch
Shipping Weight: 78.000
Main Body: Square
Warranty: Limited Lifetime
Gross Trailer Weight(GTW): 15,000 LB
Tongue Weight(TW): 1,500 LB
Receiver Tube Size: 2
Drop: 13.5 IN
Width (max): 43 IN
Width (min): 18 IN
Finish: Carbide Black Powder Coat

Notes

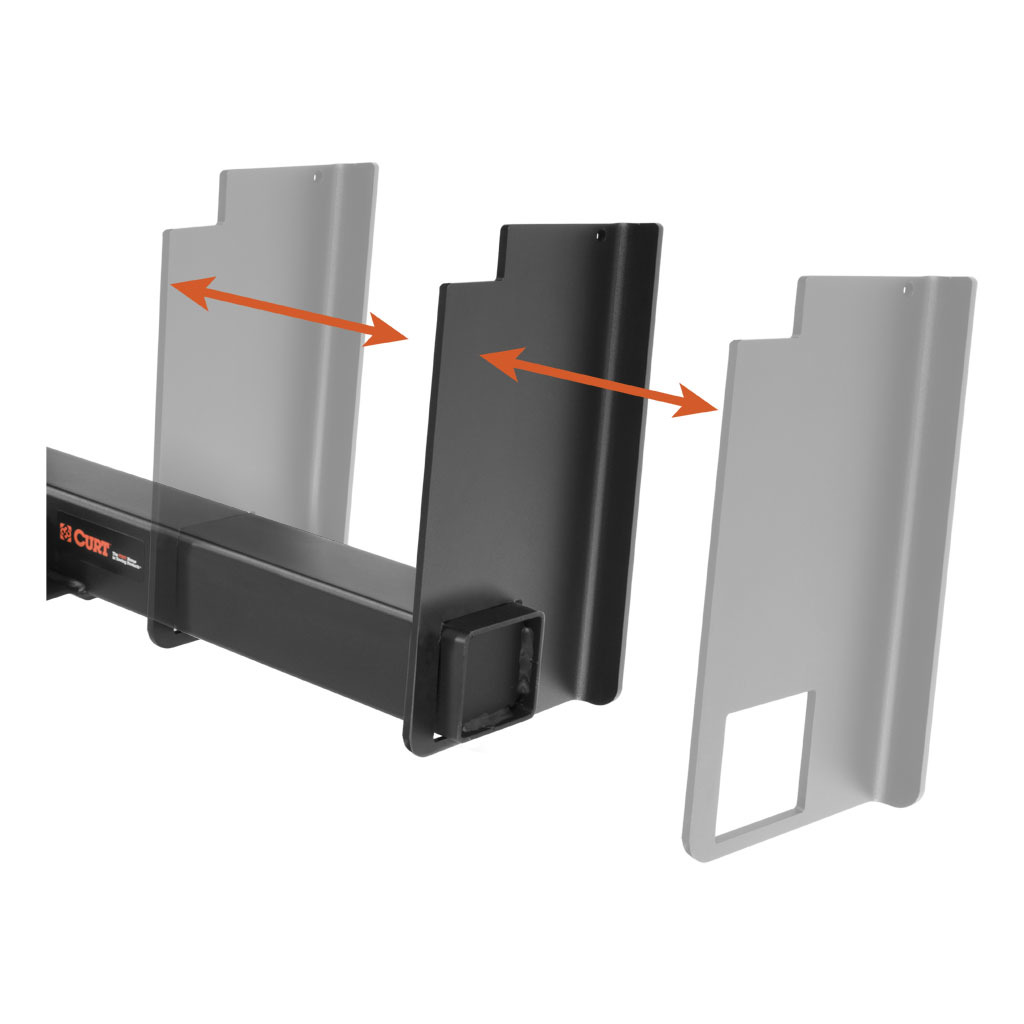

  • Adjustable frame fits a variety of vehicles (side plates do not come pre-welded)
  • Fits a max frame width of 43" and a minimum of 18"
  • Rated as a class 5 hitch
  • Great for use with utility boxes
  • Protected by a highly durable carbide powder coat finish
  • Co-cured in a rust-resistant liquid Bonderite coating
  • Strengthened with a cast, welded, seamless collar
  • Made in USA

Additional

  • Trailer hitch weight ratings are limited to vehicle manufacturer''s stated capacities

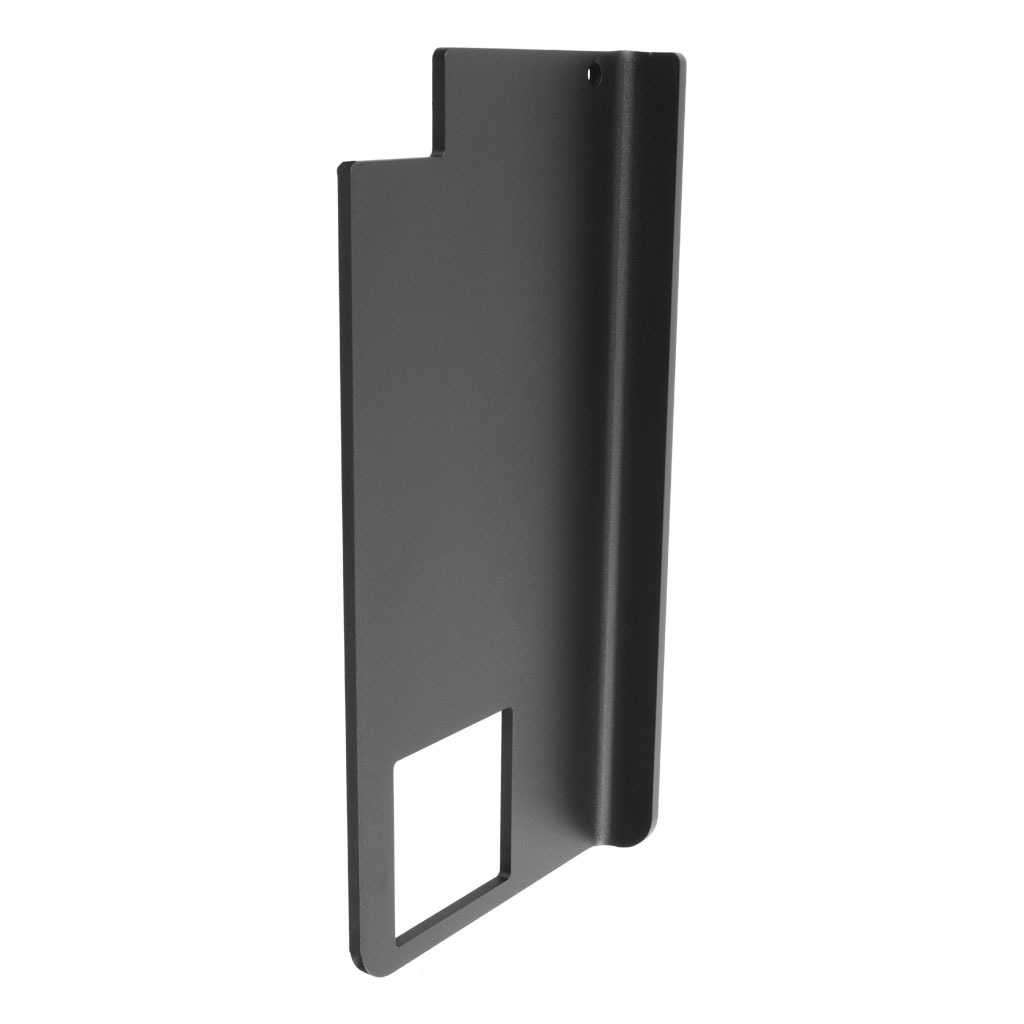

  • Adjustable side plates come detached from the main body of the hitch and must be welded on

Installation

Instruction sheet: PDF Download
