CURT TruTrack Trunnion Bar Weight Distribution System #17501

$793.25

Add to Wishlist Browse Wishlist
SKU: 612314175017 Category:

Description

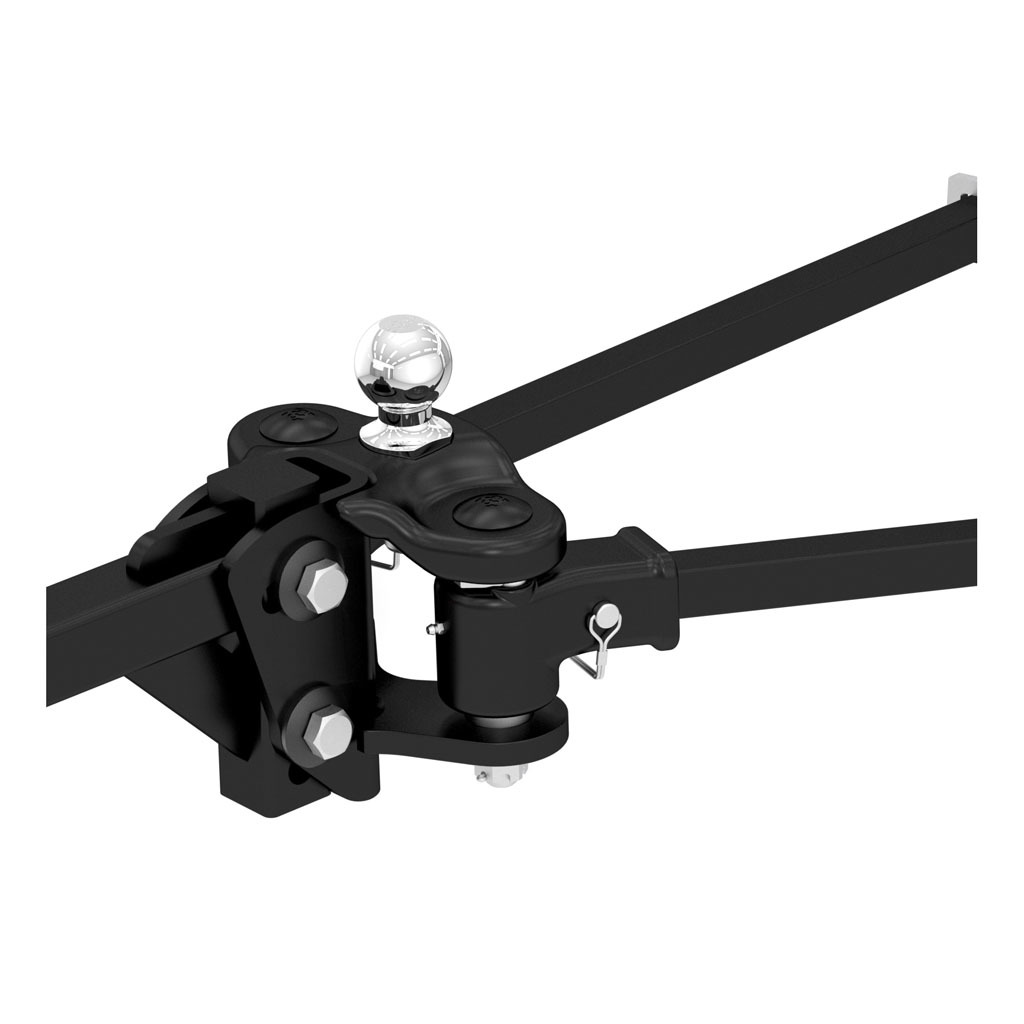

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack™ is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible.

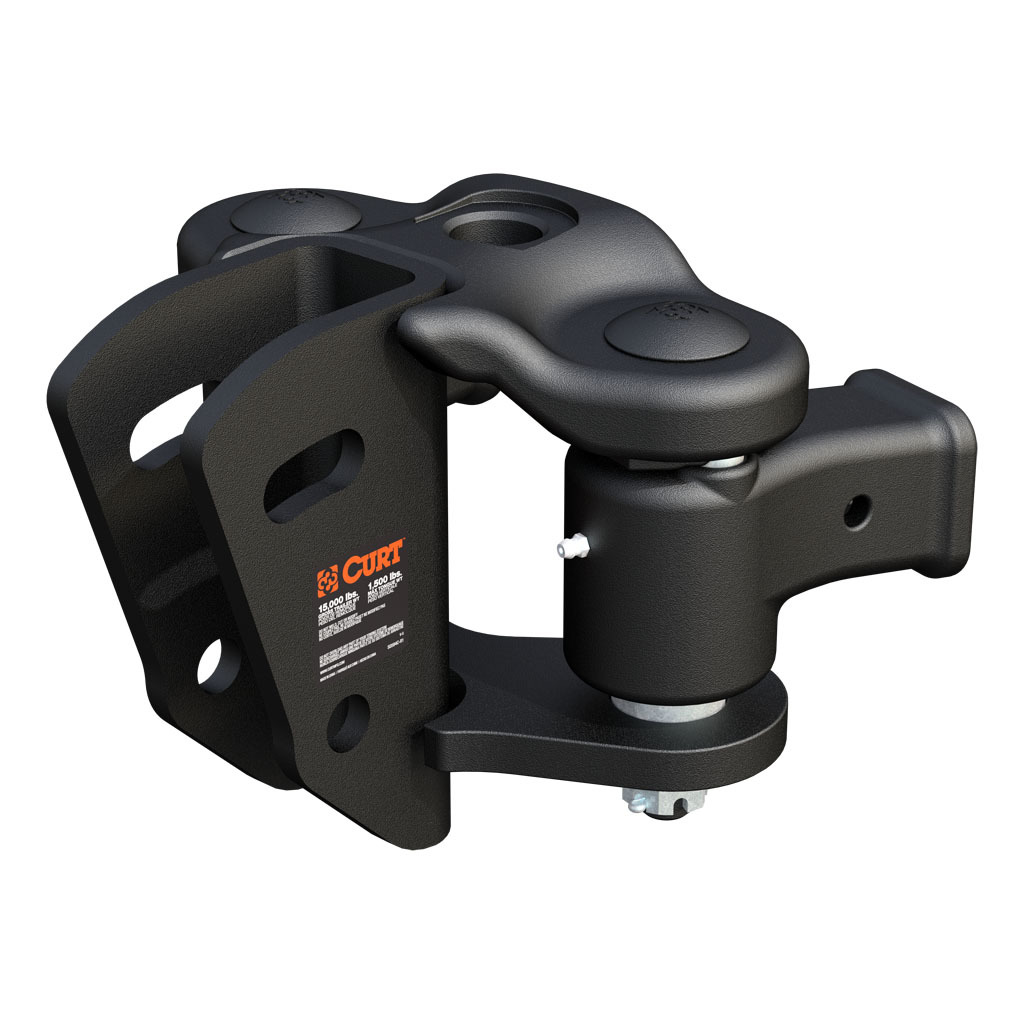

The TruTrack™ features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack™ also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack™ connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned.

In addition to its integrated sway control, the CURT TruTrack™ offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a 10-year limited warranty.

Details

Rise: 5.75 IN
Drop: 0 IN
Gross Trailer Weight(GTW): 10,000 LB - 15,000 LB
Tongue Weight(TW): 1,000 LB - 1,500 LB
Shipping Weight: 120.000
Product Weight: 0.000
Finish: Durable Carbide Powder Coat
Warranty: Ten Years Limited

Notes

  • Integrated sway control actively resists sway and levels the vehicle and trailer
  • Welded head with cast pieces provides solid spring bar attachment
  • Cam springs build up pressure for integrated sway control

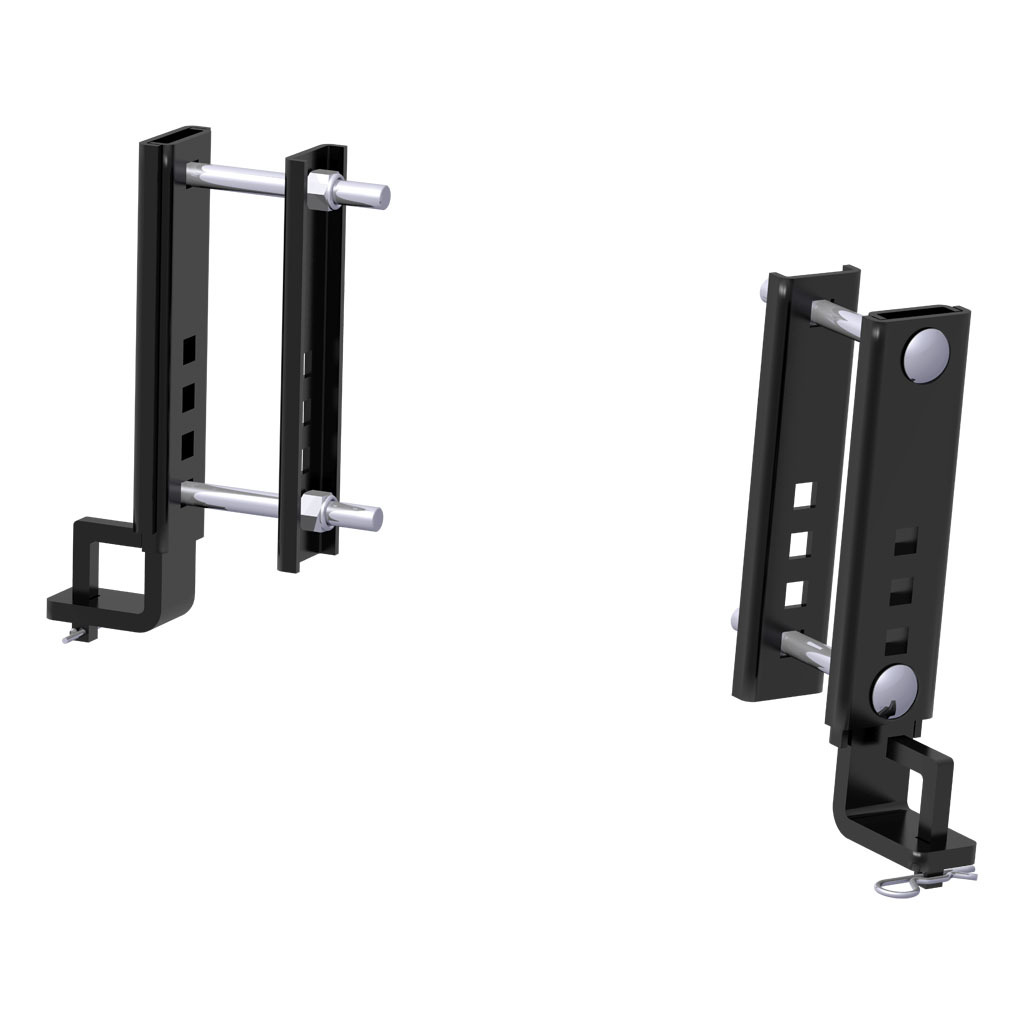

  • Fixed support brackets hold the spring bars in place laterally and vertically
  • Brackets use friction to resist lateral movement, replacing a sway control
  • Equipped with trunnion-style, forged steel spring bars
  • Equipped with trunnion-style, forged steel spring bars
  • 12" adjustable shank fits 2" x 2" receiver tube openings
  • Hex castle nut allows for easy adjustment for different trailers
  • Two neutral bar settings for narrow and wide A-frame trailers
  • Durable carbide powder coat finish and industrial chrome-plated cam components
  • Includes a pre-torqued 2 5/16" trailer ball
  • Backed by a 10-year limited warranty

Additional

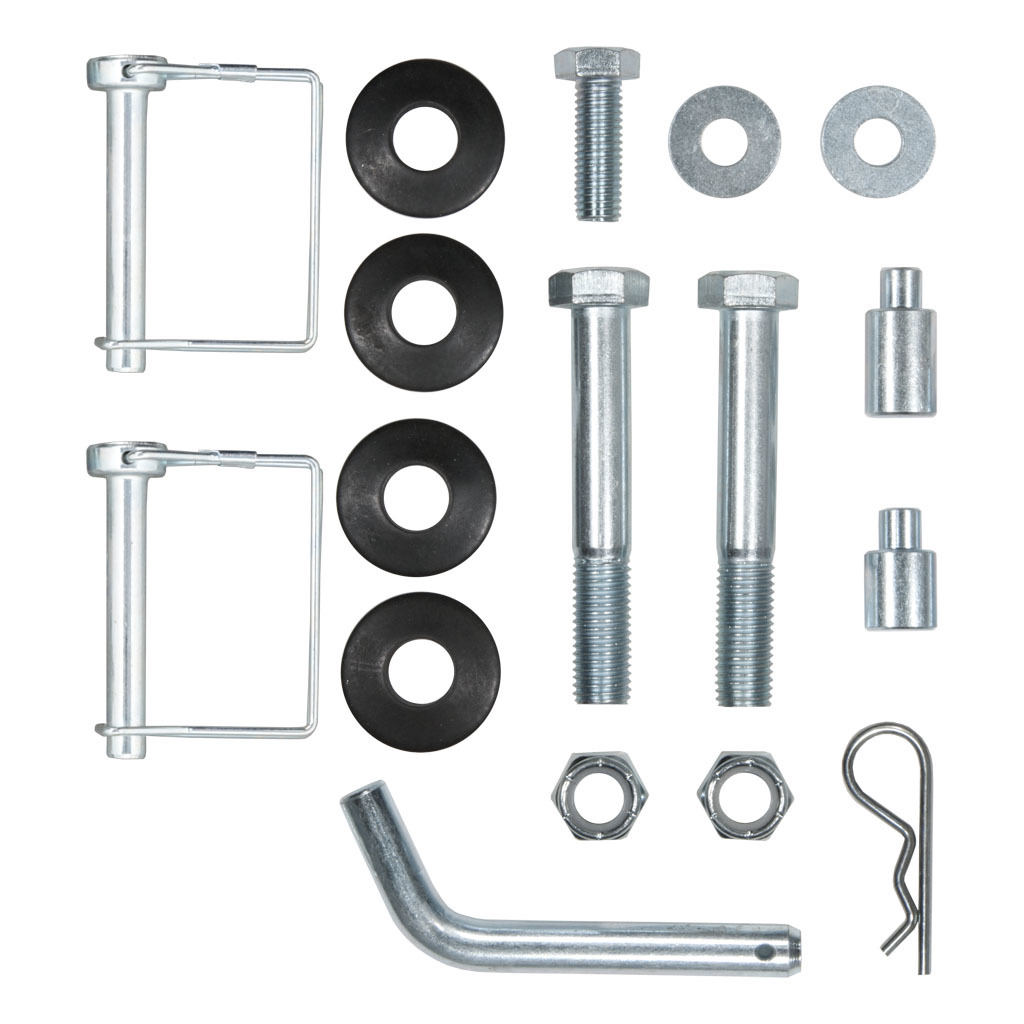

  • Includes shank, trailer ball, spring bars, head, support brackets, pin & clip
  • Lowest hole in shank cannot be used in drop position
  • Capacity limited to lowest rated towing component

Installation

Instruction sheet: PDF Download
