CURT Class 5 Xtra Duty Trailer Hitch #15409

$512.99

SKU: 612314154098 Category:

Description

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only 1/2-ton, 3/4-ton and 1-ton pickup trucks and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, gravity boxes, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component).

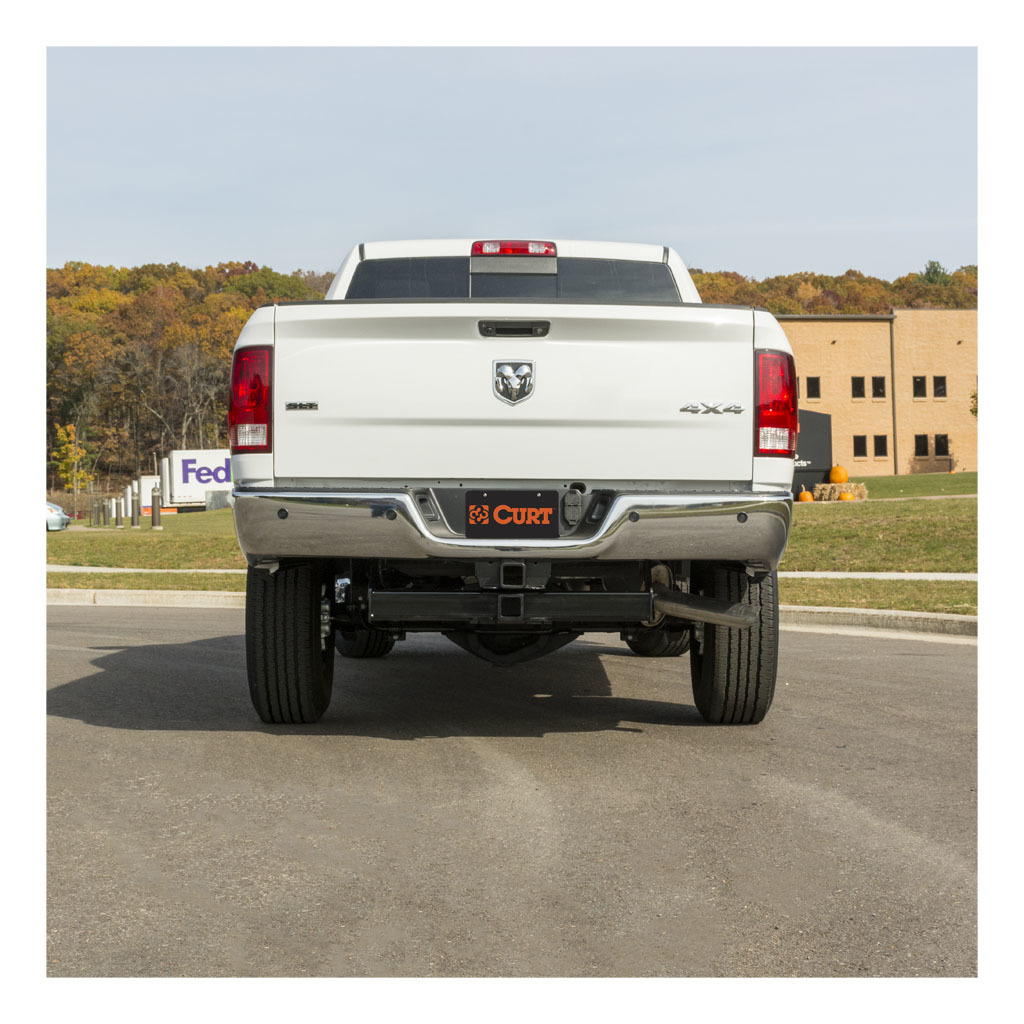

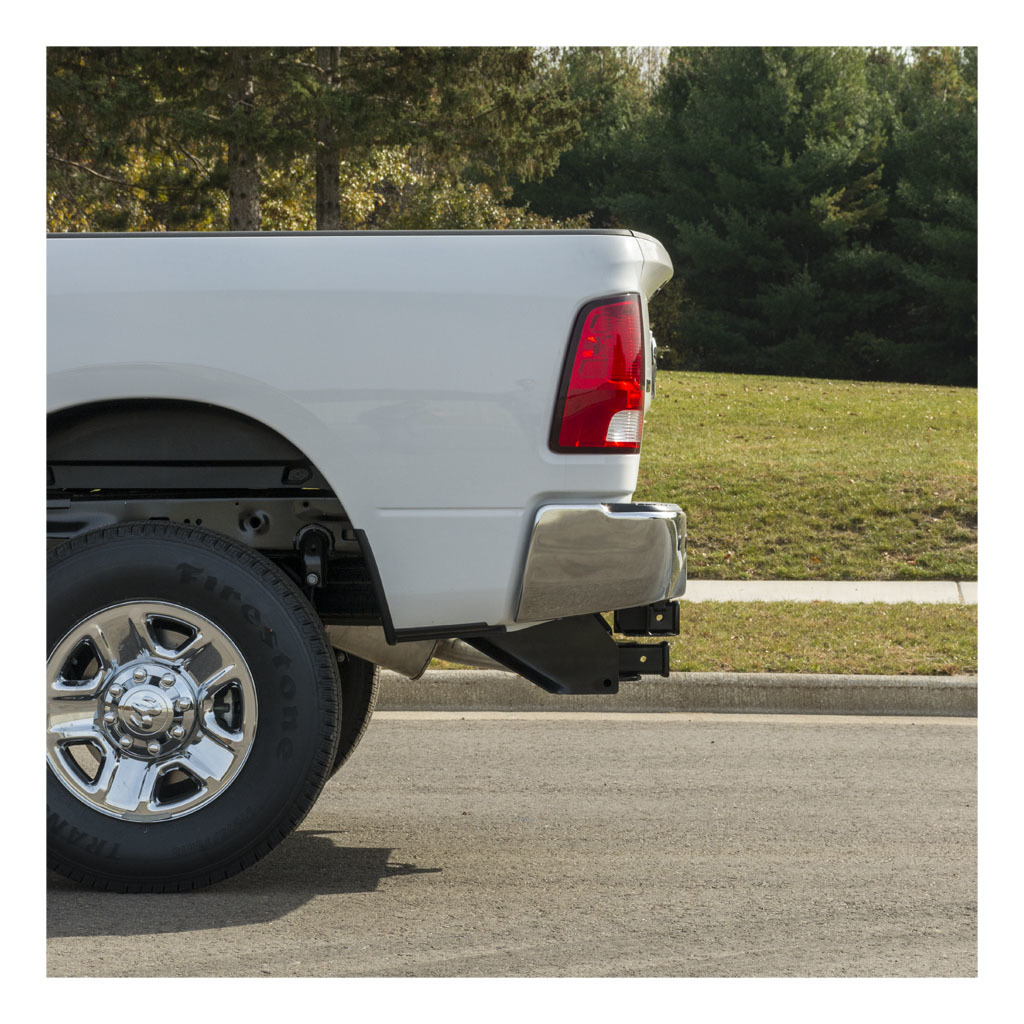

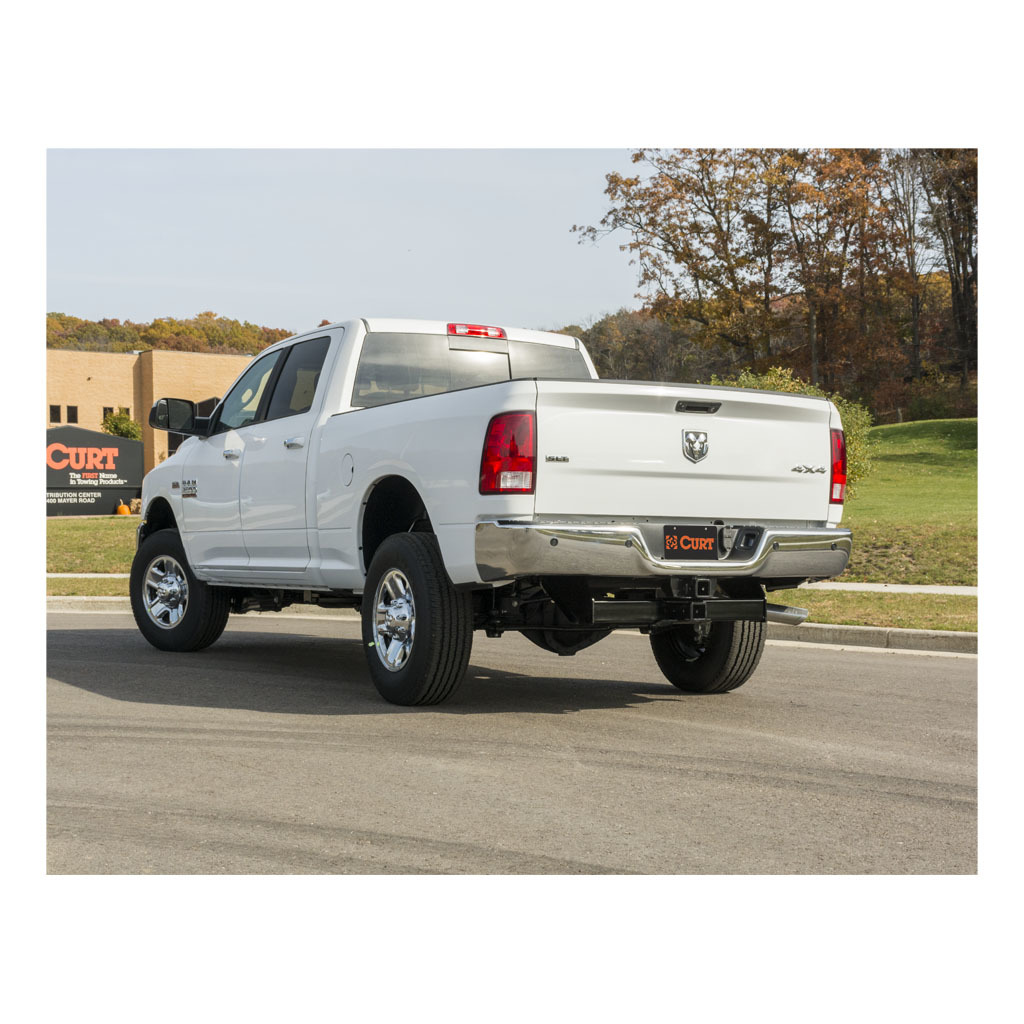

This particular Xtra Duty trailer hitch offers a gross trailer weight capacity of 17,000 lbs. and an extra-high tongue weight capacity of 2,550 lbs. It features a 2″ x 2″ receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount, and it is designed to be a custom-fit trailer hitch for certain years of the Dodge Ram 1500 (2003 built after Nov. 2002) or Dodge Ram 2500 or 3500 (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com).

In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are coated first in a liquid Bonderite coating and then finished in a high-quality black carbide powder coat. They come with grade 8 mounting hardware for solid installation and are backed with a one-year finish warranty and overall limited lifetime warranty.

Details

Shipping Weight: 76.100
Warranty: Limited Lifetime
Product Type Description: Class 5 Xtra Duty
Main Body: Square
Drilling Required: No
Weight Carrying Capacity(WC): 17,000 LB
Tongue Weight(TW): 2,550 LB
Weight Distribution(WD): 17,000 LB
Weight Distribution Tongue Weight(WDTW): 2,550 LB
Receiver Tube Size: 2

Notes

  • Made with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Constructed with a large, powerful main body
  • Protected by a highly durable carbide powder coat finish
  • Co-cured in a rust-resistant liquid Bonderite coating
  • Strengthened with a cast, welded, seamless collar
  • Features wide safety chain openings for heavy-duty hooks
  • Equipped with an open-back receiver for easy cleaning
  • Backed by a limited lifetime warranty
  • Made in USA

Additional

  • Trailer hitch weight ratings are limited to vehicle manufacturer''s stated capacities
  • Includes strong, grade 8 installation hardware

Installation

Instruction sheet: PDF Download
