CURT Weight Distribution Shank #17120

$130.47

Add to Wishlist Browse Wishlist
SKU: 612314171200 Category:

Description

At CURT, we think your towing equipment should never be the limiting factor. If your trailer has the tonnage and your truck has the muscle, then nothing should stand in the way of you hitching up and heading out.

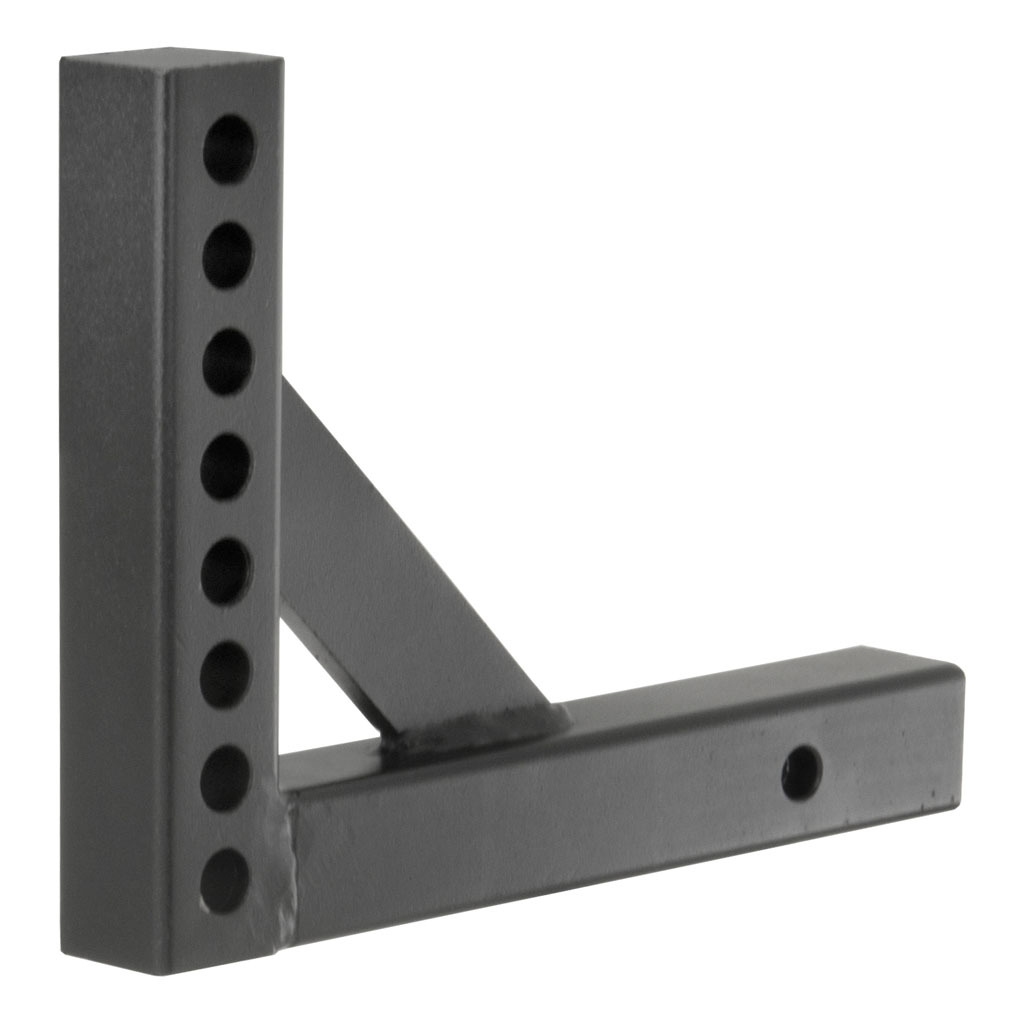

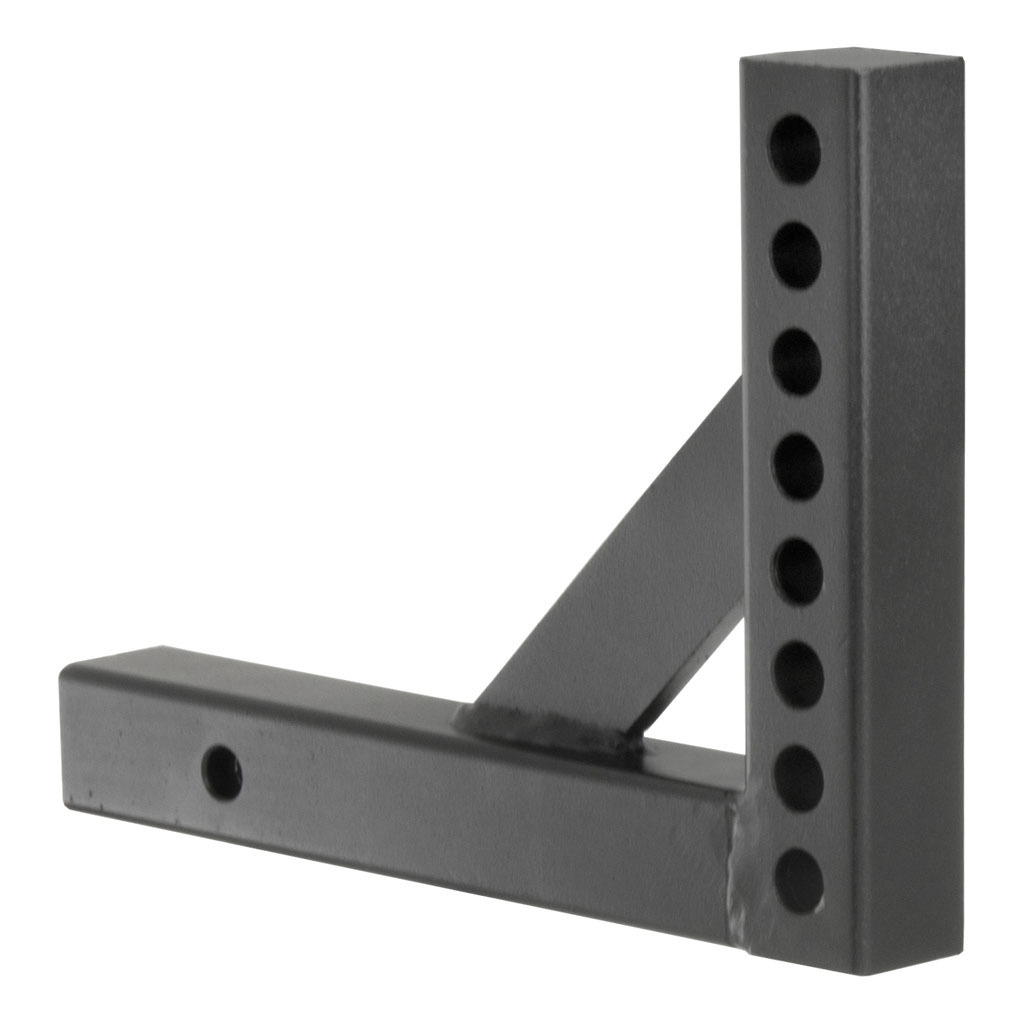

Made with high-strength steel and a solid design, this CURT WD replacement shank is made for heavy-duty towing. It features a 2″ x 2″ shank to fit any equivalent size receiver tube opening, and it offers the strength necessary for towing large RVs and travel trailers. While the receiver tube shank measures 2″ x 2″, the vertical shank offers a universal fit to be compatible with most CURT weight distribution hitches. Holes in the vertical shank are spaced 1 1/4″ center-to-center and have a 3/4″ diameter, allowing for a maximum rise of 7 3/4″ and a maximum drop of 9 3/4″. To make sure this weight distribution hitch accessory has the grit to stand up to whatever the road throws at you, it comes finished in a durable black powder coat finish.

Details

Shipping Weight: 25.000
Warranty: One Year Limited
Product Type Description: Weight Distribution Shank
Height: 8 3/4 IN
Rise: 7 3/4 IN
Drop: 9 3/4 IN
Length: 10 IN
Finish: Durable Powder Coat
Color: Black

Notes

  • Provides an adjustable mount for most weight distribution hitches
  • Features multiple holes for adjustable head height
  • Can be flipped to provide necessary drop or rise
  • 3/4" diameter holes are spaced 1 1/4" from center to center
  • Fits 2" x 2" receiver tube openings
  • Constructed from solid steel for reliable strength
  • Protected by a durable powder coat finish

Additional

  • Limited to spring bar capacity
