CURT TriFlex Trailer Brake Controllers (6-Pack) #51142

$660.92

Add to Wishlist Browse Wishlist
SKU: 612314511426 Category:

Description

The TriFlex™ proportion-based brake controller features a compact size, a digital display and the ability to manage up to eight brakes at a time. The feature that sets the TriFlex™ apart from many others is its triple-axis motion-sensing accelerometer. This integrated circuit component allows the TriFlex™ to detect every motion of your vehicle and trailer with exact precision and to then apply the perfect amount of braking power for every situation. The TriFlex™ also automatically adjusts brake output when going up or down a hill and is compatible with anti-lock brakes and cruise control. It comes with a mounting bracket and hardware and can be mounted at various angles on your vehicle’s dash. Best of all, like other CURT brake controllers, the TriFlex™ is protected by a limited lifetime warranty.

These CURT trailer brake controllers are designed to work with quick plugs so that they can readily plug into your vehicle’s original equipment socket. They also include mounting brackets and hardware for easy installation. A brake controller should be mounted somewhere on the dash of your vehicle, and we recommend putting it below the steering wheel, either on the right or left side of the steering column. This way the control will not block your view when driving, but it will remain accessible and visible when adjustment is needed.

Details

Shipping Weight: 3.000
Part Type: Brake Control Unit
Material: Blank
Axles: 1-4
Activation: Inertia accelerometer
Display: Digital
Mount Angles: Various
Level Adjust: Auto
Warranty: Limited Lifetime

Notes

  • Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
  • Third axis provides dynamic power adjustments when going up or down a hill
  • Nine levels of sensitivity adjustment for varying loads or driving conditions
  • User-selectable power output and trailer brake light activation
  • Automatic leveling and calibration eliminate setup requirements
  • Operates 2-8 trailer brakes at a time (1-4 axles)
  • Digital display shows power adjustments in 0.1 increments
  • Built-in reverse-polarity and short-circuit protection
  • Tow vehicle 'low voltage' and trailer disconnect indicators
  • Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic
  • Compact size: 3-1/4" wide, 4" deep, 7/8" tall
  • Mounts at various angles, above or below the dash, to increase usability
  • Auto sleep mode prevents battery drain after five minutes of idle time
  • Equipped with a quick plug for fast, easy installation
  • Limited lifetime warranty

Additional

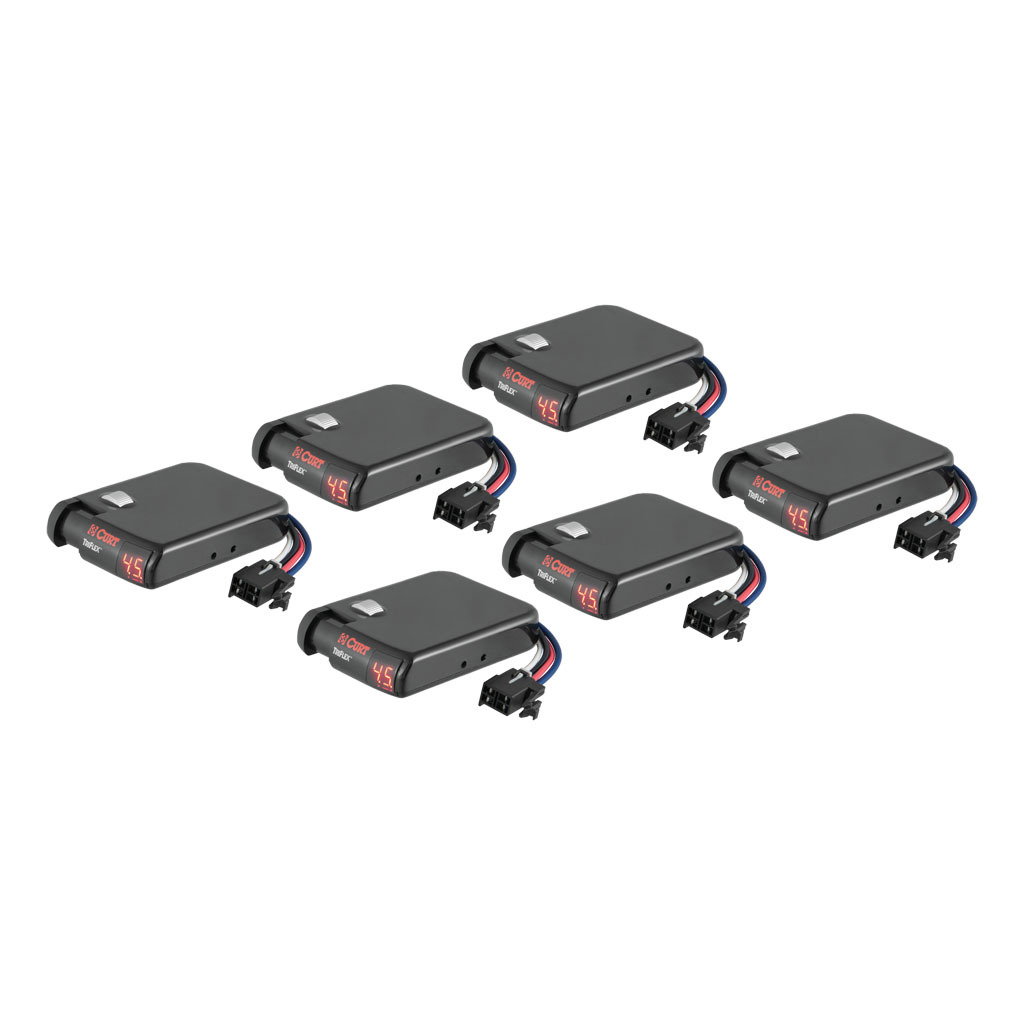

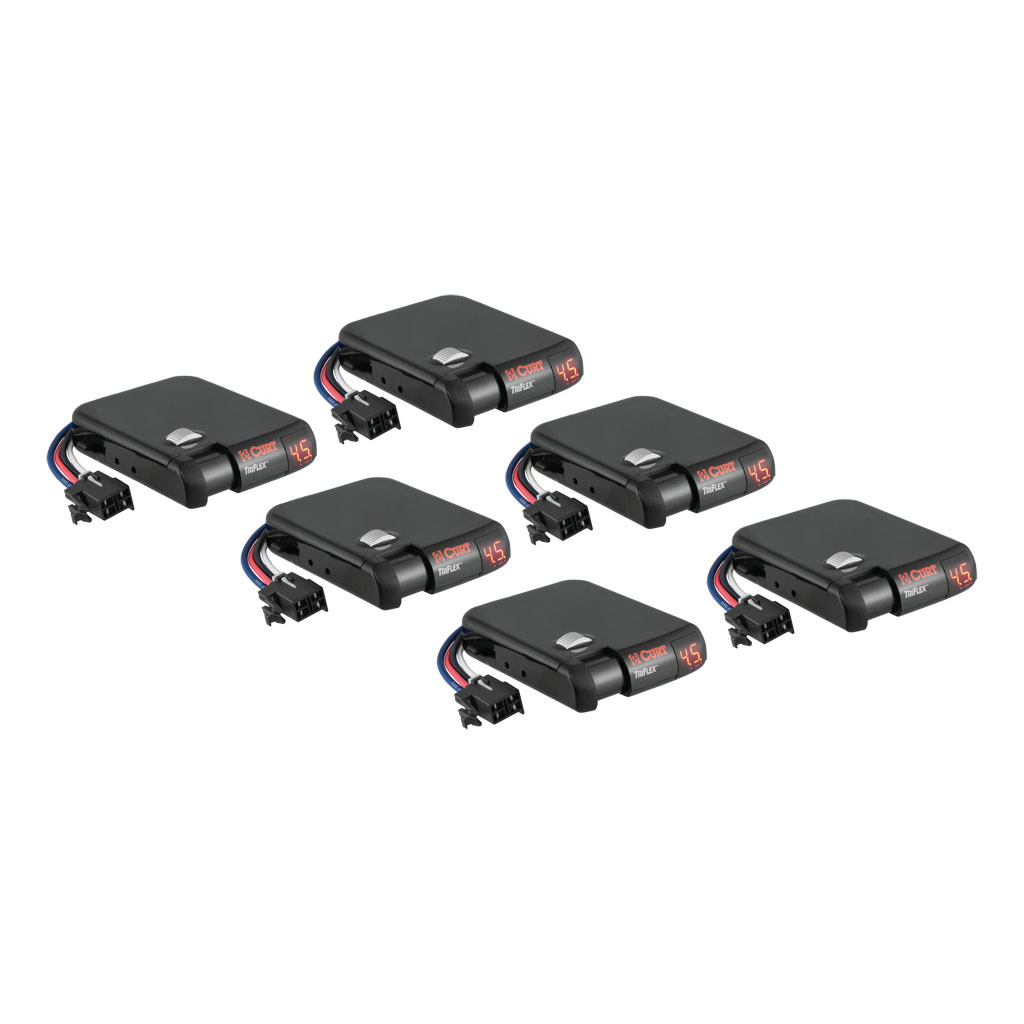

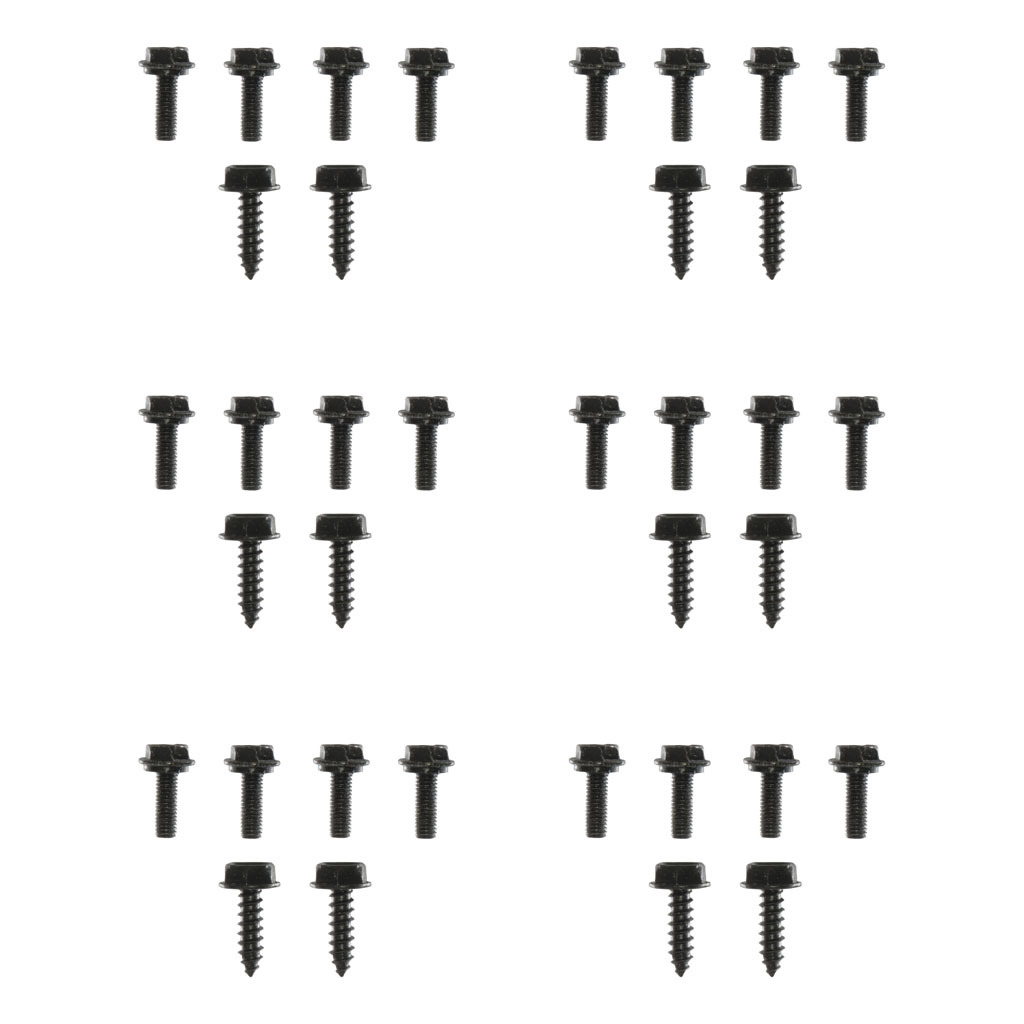

  • Includes six TriFlex brake controls and all mounting hardware
