CURT Powered Converter Wiring Kit (10 Amps) #55151

$17.96

Add to Wishlist Browse Wishlist
SKU: 612314551514 Category:

Description

When your vehicle does not readily provide an electrical connection for hooking up your trailer, CURT electrical converts offer the solution. Working tail lights on your trailer are absolutely essential any time you tow, and a converter provides an effective way to properly equip your vehicle for safe towing. A CURT electrical converter, much like our custom vehicle-to-trailer wiring harnesses, provides a trailer connector on your vehicle by slicing into the vehicle’s electrical system. Electrical converters are designed to splice directly into the taillight wiring, rather than plugging into various sockets, giving them the nickname “taillight converters”. Though it requires a little extra work compared to a custom wiring harness, a tail light converter offers a reliable, long-term connector solution.

This converter wiring kit is intended to be used with various CURT powered taillight converters. Powered converters require a direct connection to the vehicle’s battery, and the powered converter wiring kit #55151 provides all of the components needed to establish a secure connection. The kit includes 20 feet of 12 gauge wire, a 10-amp fuse, an in-line fuse holder, a 3/8″ ring terminal, a butt connector, a 14-1/2″ cable tie and eight 6″ cable ties. This wiring kit is rated at 10 amps and comes included with CURT powered electrical converters #59146, #59187, #59190, #59200 and #59201.

Details

Part Type: Powered Converter Wiring Kit
Material: Blank
Warranty: One-Year Limited Warranty
Shipping Weight: 0.740

Notes

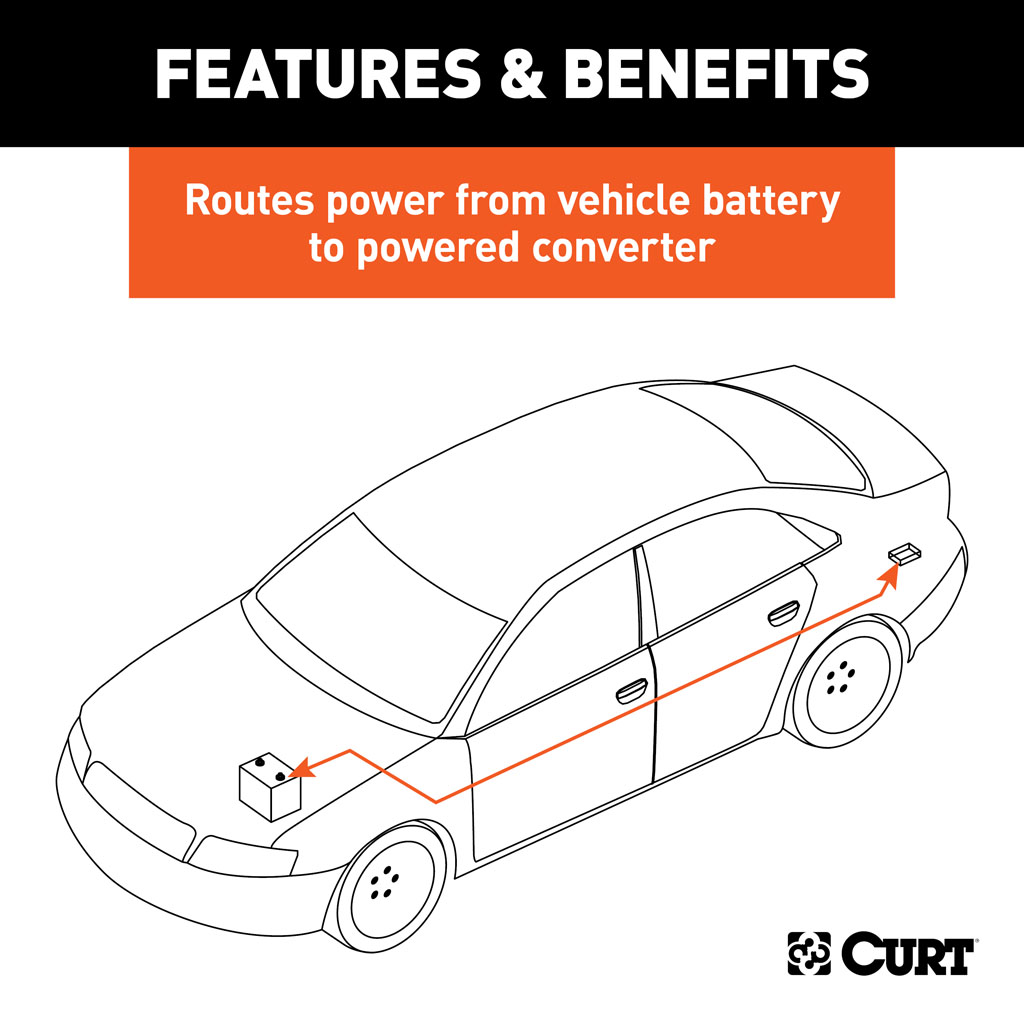

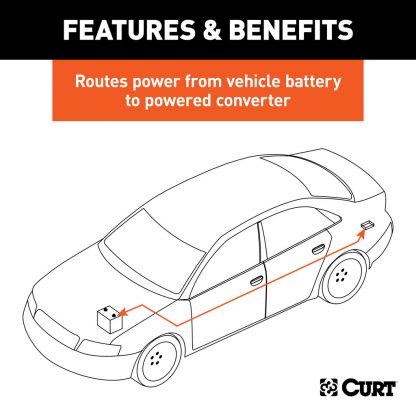

  • Routes power from vehicle battery to powered converter
  • Designed for use with battery-powered electrical converters

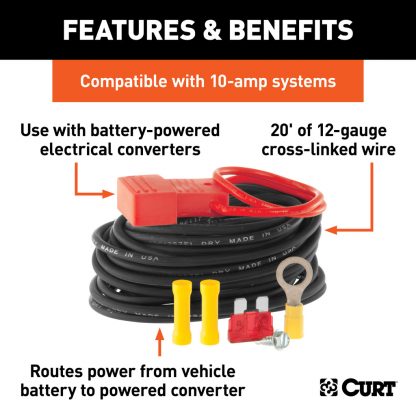

  • 20' of 12 gauge cross-linked wire for flexible installation

Additional

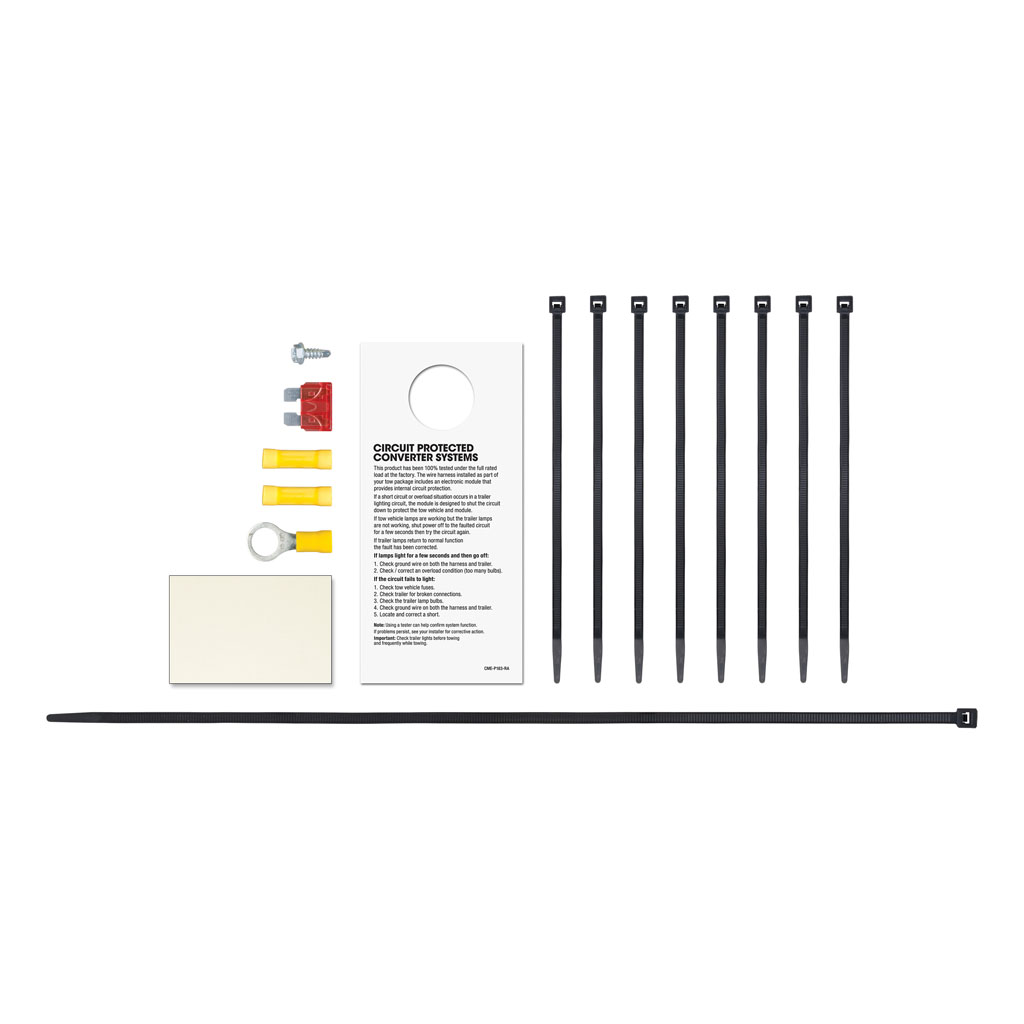

  • Includes cross-linked wire, in-line fuse holder, ATC10 fuse, 3/8" ring terminal, a 12-10 gauge butt connector, eight 6" cable ties and one 14-1/2" cable tie

Installation

Instruction sheet: PDF Download

CURT 55151: Powered Taillight Converter Kit
