CURT Custom Wiring Connector (4-Way Flat Output) #56008

$43.81

Add to Wishlist Browse Wishlist
SKU: 612314560080 Category:

Description

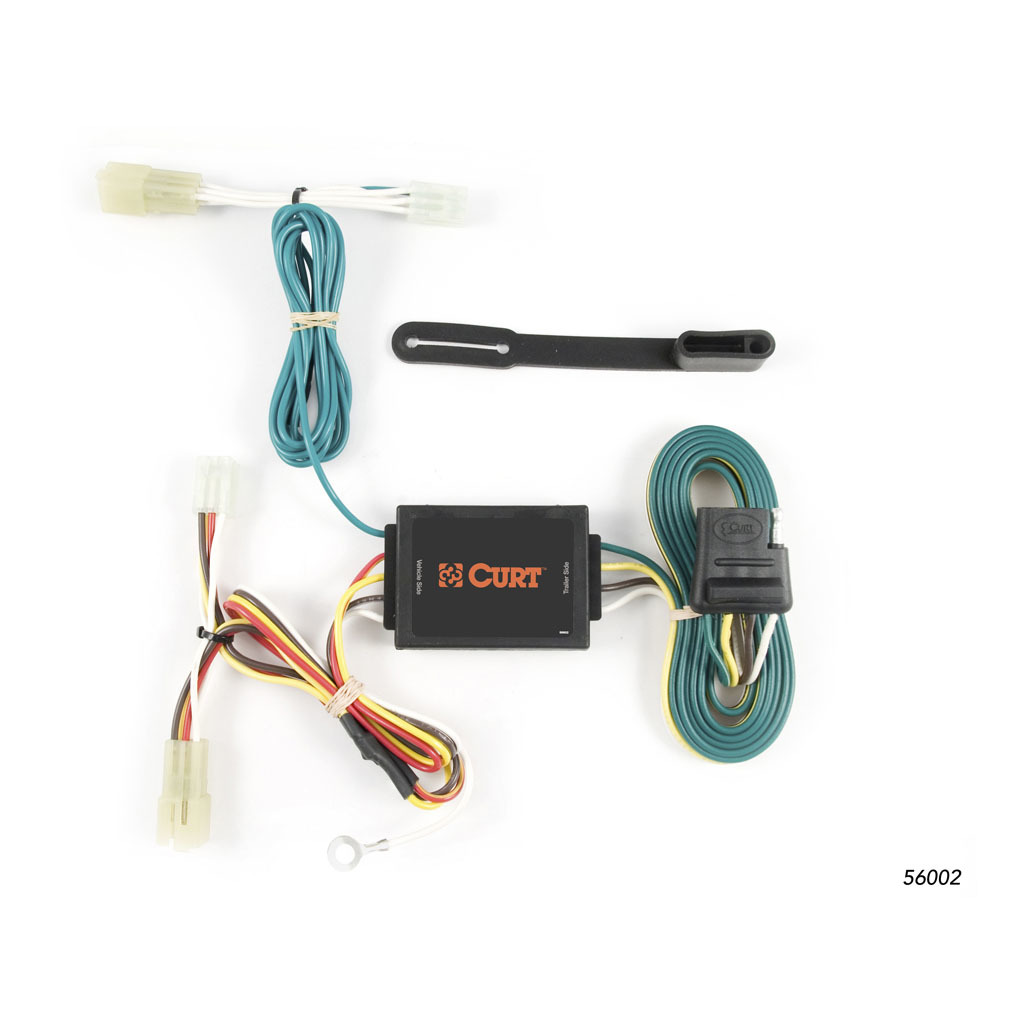

A CURT custom wiring connector (sometimes called a T-connector) is a simple, plug-and-play electrical device that eliminates the need for cutting, splicing and soldering when installing vehicle-to-trailer wiring.

Most vehicles do not come ready to tow. Unless your vehicle has a towing package, it is probably not equipped with a trailer wiring connector. This is where CURT’s custom wiring connectors come into play. A custom wiring connector uses a single original equipment plug to plug into a special socket provided by your vehicle. Though this option is not available on every vehicle, some automotive manufacturers design their vehicles to be easily equipped for towing by supplying a socket, integrated into the vehicle’s electrical system, to readily accept a custom wiring connector. With a CURT custom wiring connector, there is no need to tap into the taillight assembly because a special socket is already provided.

This custom wiring connector provides a 4-way flat connector socket and comes with a circuit-protected converter. It is designed to be a custom wiring option for certain years of the Honda Accord Crosstour hatchback or Acura RDX 4-door liftback wagon (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). CURT custom wiring connectors are designed to be long-lasting and simple to install. They come with dust covers to keep your connector clean when not in use and feature a one-year limited warranty to give you peace of mind.

Details

Battery-Powered: Yes
T-Connector Location: P3
Warranty: One-Year Limited Warranty
Material: Blank
Shipping Weight: 0.725
Part Type: Custom Wiring Connector
Turn and Brake Circuits: 3.0 Amps
Tail Light Circuits: 6.0 Amps
Electrical System Type: 3W

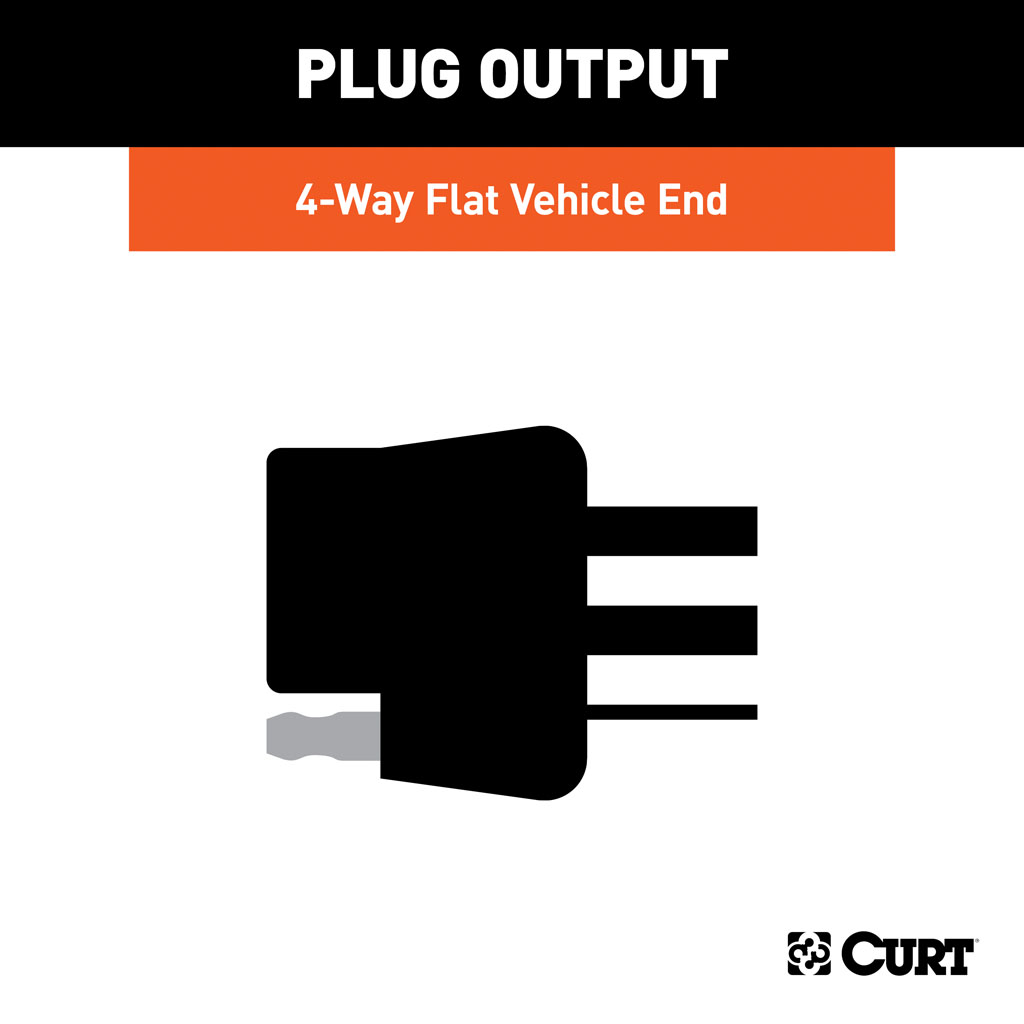

Output Type: 4-Way Flat
Converter Type: Circuit Protected and Powered

Notes

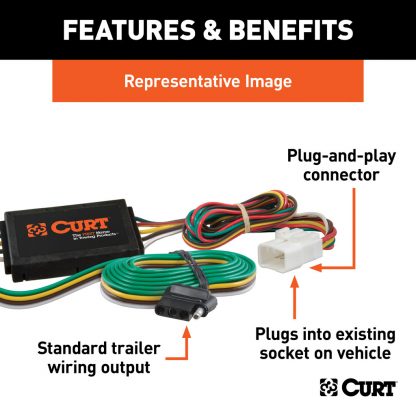

  • Plugs into existing OEM vehicle socket to provide a 4-way flat socket
  • Simple plug-and-play design eliminates the need for cutting or splicing

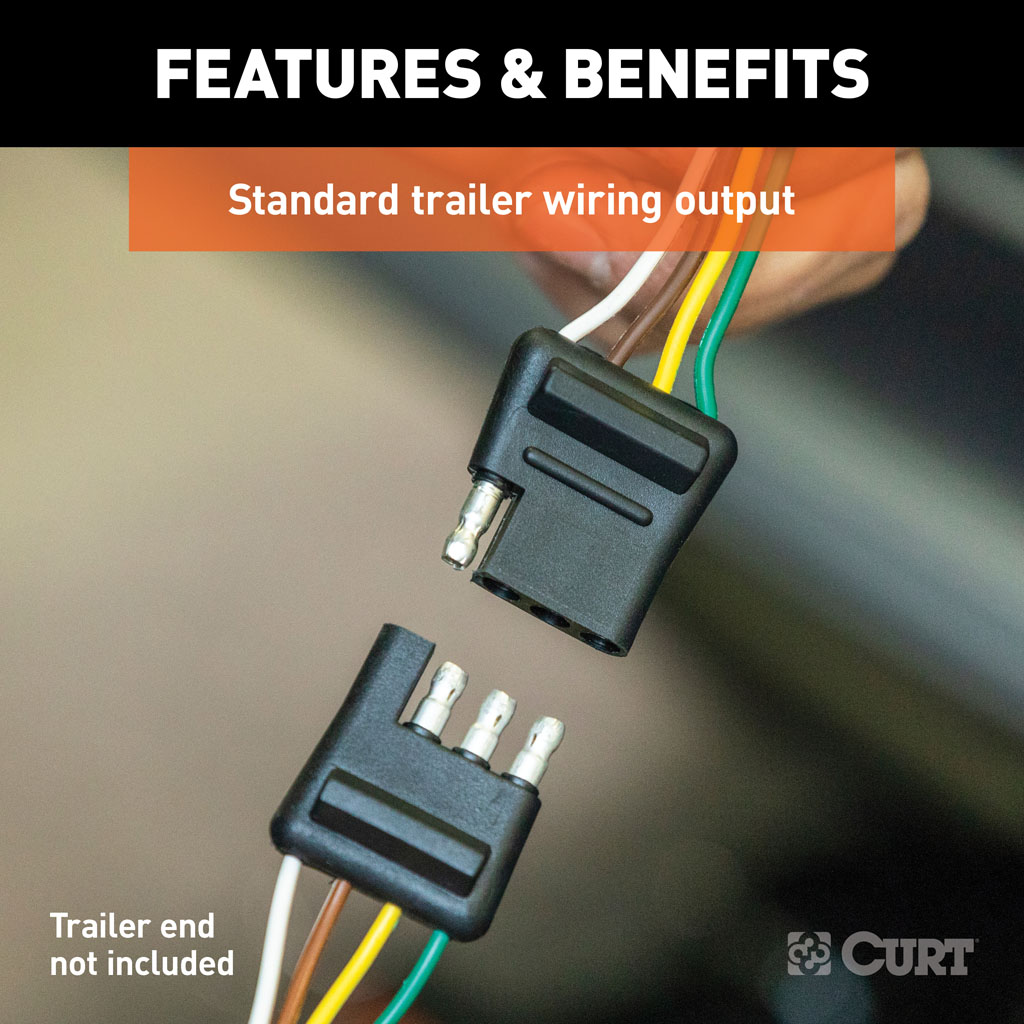

  • 4-way flat output connects tail lights, brake lights and turn signals
  • Equipped with a powered 3-wire to 2-wire tail light converter
  • Constructed with SMT circuitry for better performance and durability

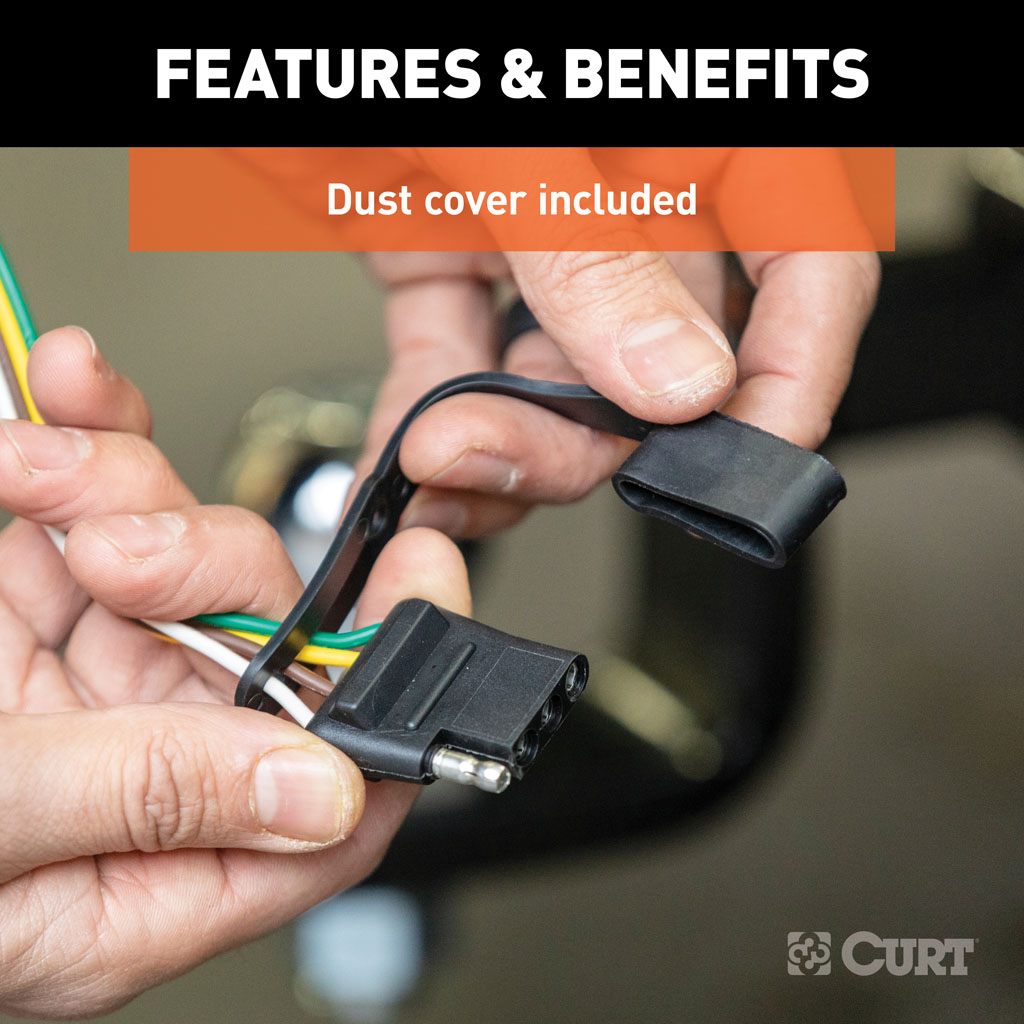

  • Dust cover included to keep connector clean when not in use
  • Backed by a limited one-year warranty

Additional

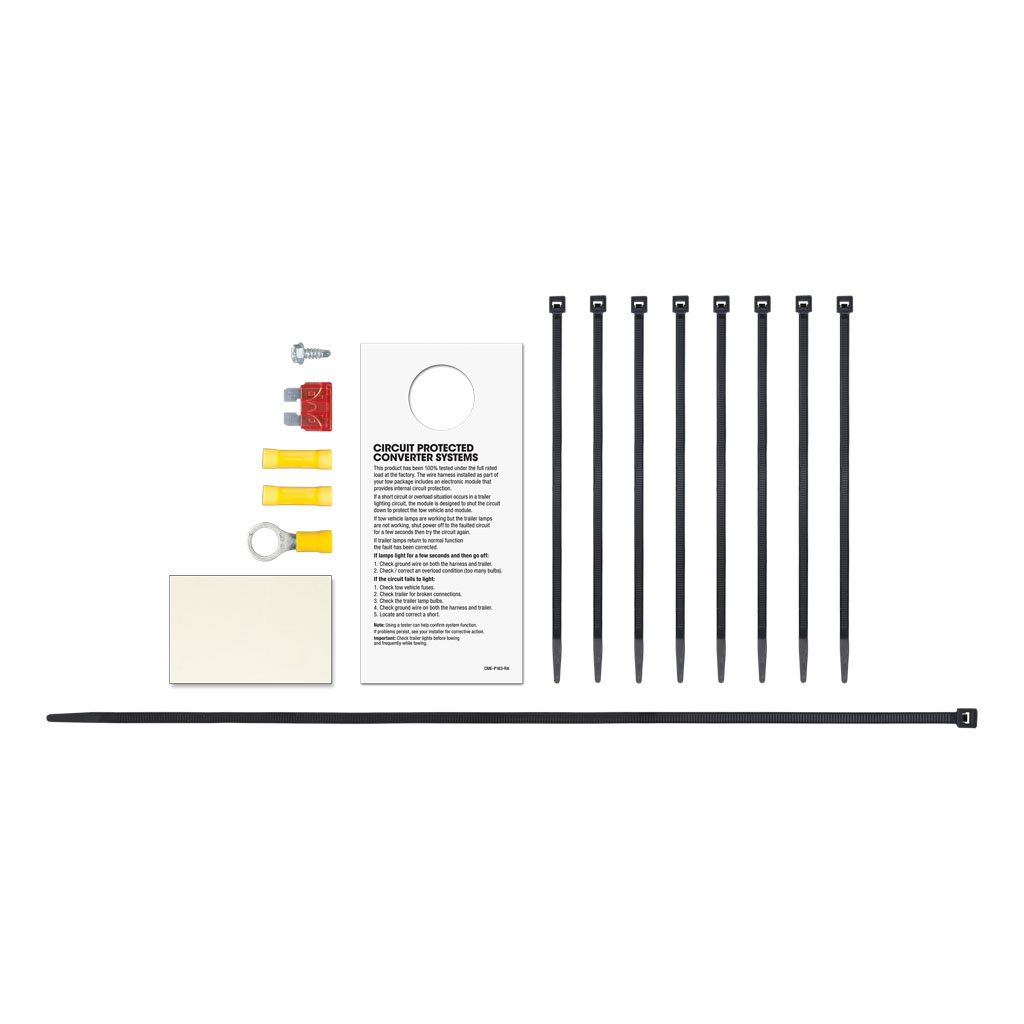

  • Includes powered 3-wire to 2-wire electrical converter with wiring kit (connection to battery required)

Installation

Instruction sheet: PDF Download
