CURT Commercial Duty Forged Ball Mount (2-1/2″ Shank, 20,000 lbs., 8″ Drop) #45460

Sale!

$157.72 $126.18

SKU: 612314454600 Category:

Description

When it comes to towing on the job, there is no room for messing around. Either your equipment can get it done or it falls to the wayside. Give yourself the advantage with a CURT commercial-duty forged ball mount. Defying all preconceived ideas about heavy-duty towing, these solid steel monsters are packed with the strength necessary to tow virtually anything your commercial receiver trailer hitch can handle. The secret to their strength is their one-piece, zero-weld construction.

Each CURT forged ball mount is designed to surpass other 2-1/2″ options to accommodate the added stress of heavy-duty towing. Forged steel construction makes these ball mounts incredibly strong and able to tow up to 20,000 lbs. of gross trailer weight in the drop position (16,000 lbs. in rise position). This CURT forged ball mount can also handle trailer tongue weight up to 2,700 lbs. drop and 2,160 lbs. rise, giving it the added advantage it needs for towing the largest of trailers. It comes with a black carbide powder coat finish to provide the necessary protection against rust, scratches and UV damage so that it is able to face the challenges of hard, honest work. From the construction site, to the industrial park, to the farm, a forged ball mount is the obvious choice, giving you the power you need for towing dump trailers, car haulers, toy haulers, livestock trailers, chopper boxes, gravity boxes, dual-axle utility trailers, RVs, small yachts and much more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).

All CURT forged ball mounts feature a 2-1/2″ x 2-1/2″ shank, allowing them to fit into any trailer hitch with the same size receiver tube. The CURT class 5 Commercial-Duty hitch is an ideal counterpart for one of our forged ball mounts. With their especially high towing capacity, forged ball mounts are frequently used on full-size pickups, SUVs, flatbeds and other commercial trucks.

Details

Drop: 8 IN
Receiver Tube Size: 2.5 x 2.5
Hole Size: 1.25
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Shipping Weight: 23.500
Rise: 6 1/2 IN
Tongue Weight(TW): 2,700 LB
Gross Trailer Weight(GTW): 20,000 LB
Material: Carbon Steel
Finish: CARBIDE BLACK POWDER COAT

Notes

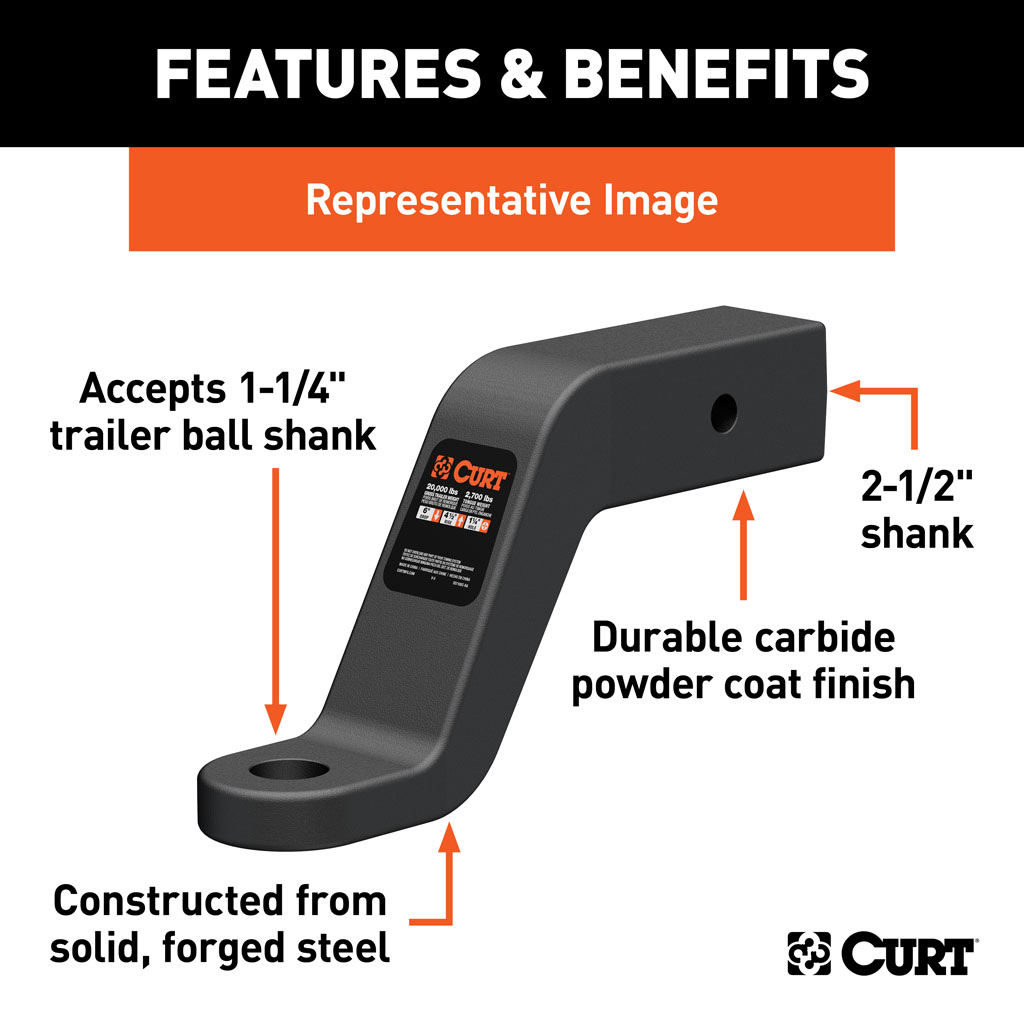

  • Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening

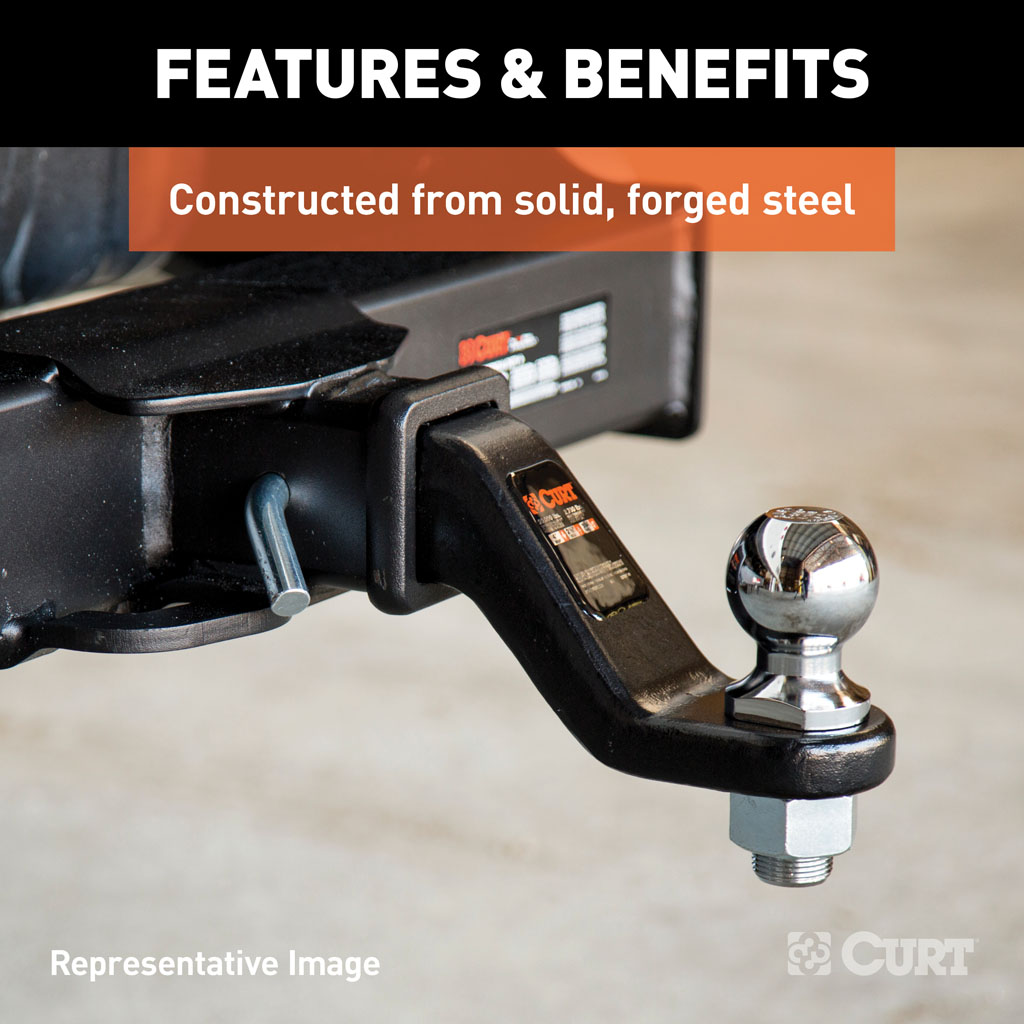

  • Constructed from solid, forged steel for superior strength

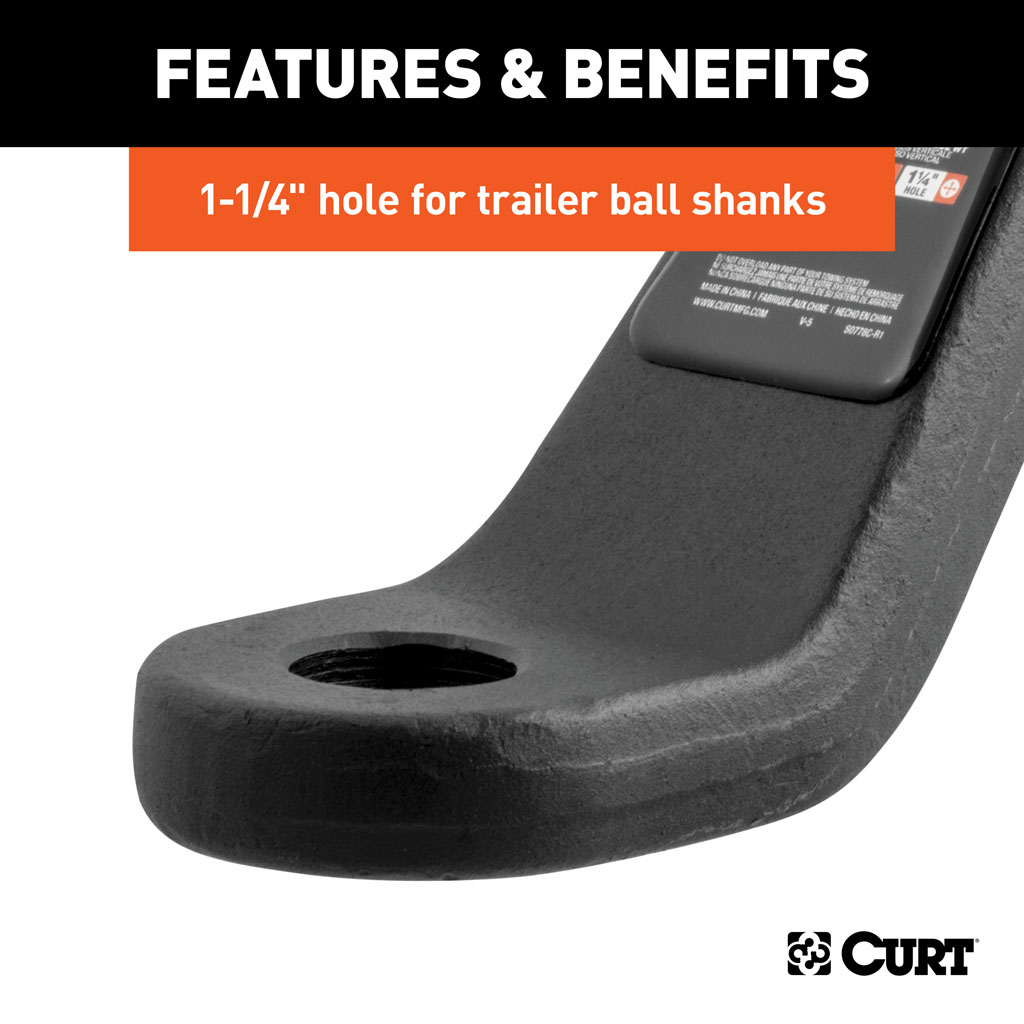

  • Equipped with a 1-1/4" hole to accept a trailer ball shank

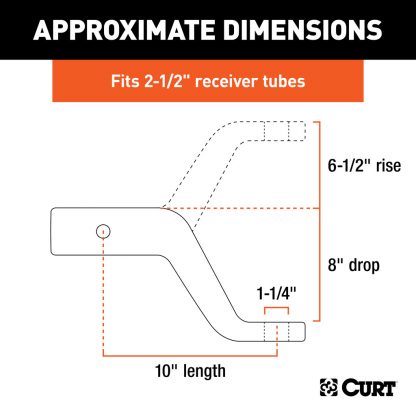

  • 6-1/2" rise or 8" drop for precise trailer leveling
  • Protected by a highly durable carbide powder coat finish
  • Limited lifetime warranty (one-year finish, one-year parts)
