CURT Class 3 Trailer Hitch #13942

$210.86

Add to Wishlist Browse Wishlist
SKU: 612314139422 Category:

Description

The CURT class 3 trailer hitch is the most common type of trailer hitch installed on full-size pickup trucks and SUVs. It is also found on full-size cars, crossover SUVs, minivans and mid-size trucks. That is because the class 3 packs the punch of a heavyweight hitch while still staying light on its feet. This CURT class 3 hitch offers a gross trailer weight capacity of 5,000 lbs. and a comparable tongue weight capacity of 500 lbs. It is designed to be a custom-fit trailer hitch for certain models of the Chevrolet 1500 pickup (classic) with roll pan bumper or GMC 1500 pickup (classic) with roll pan bumper (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a square tube frame and comes with all necessary hardware for a complete installation.

The 2″ x 2″ receiver tube opening of this class 3 hitch is able to accept a hitch-mounted accessory, such as a bike rack or cargo carrier, or a ball mount to tow most standard size trailers, including utility trailers, single-horse livestock trailers, boat trailers and large campers. One special feature about the class 3 that is not found in classes 1 or 2 is its compatibility with a weight distribution hitch. When used in combination with a WD hitch, this class 3”s gross trailer weight capacity increases to 8,000 lbs. and the tongue weight capacity to 800 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component).

CURT class 3 trailer hitches are engineered to be strong and capable, having a quality steel frame and a solid finish. They are put through strenuous testing before being deemed ready for market and come with two coatings — a liquid Bonderite coating and a powder coat in high-gloss black — that cure together to form a strong resistance against rust, scratching, UV damage and other wear. Our hitches are our pride, and as such, we back them up with a limited lifetime warranty and a one-year finish warranty.

Details

Shipping Weight: 34.000
Drilling Required: No
Main Body: Square
Product Type Description: Class 3 Trailer Hitch
Warranty: Limited Lifetime
Receiver Tube Size: 2
Weight Distribution(WD): 8,000 LB
Weight Distribution Tongue Weight(WDTW): 800 LB
Weight Carrying Capacity(WC): 5,000 LB
Tongue Weight(TW): 500 LB

Notes

  • Made with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Protected by a durable high-gloss black powder coat finish
  • Co-cured in a rust-resistant liquid Bonderite coating
  • Strengthened with a cast, welded, seamless collar
  • Equipped with an open-back receiver for easy cleaning
  • Backed by a limited lifetime warranty
  • Made in USA

Additional

  • Trailer hitch weight ratings are limited to vehicle manufacturer''s stated capacities

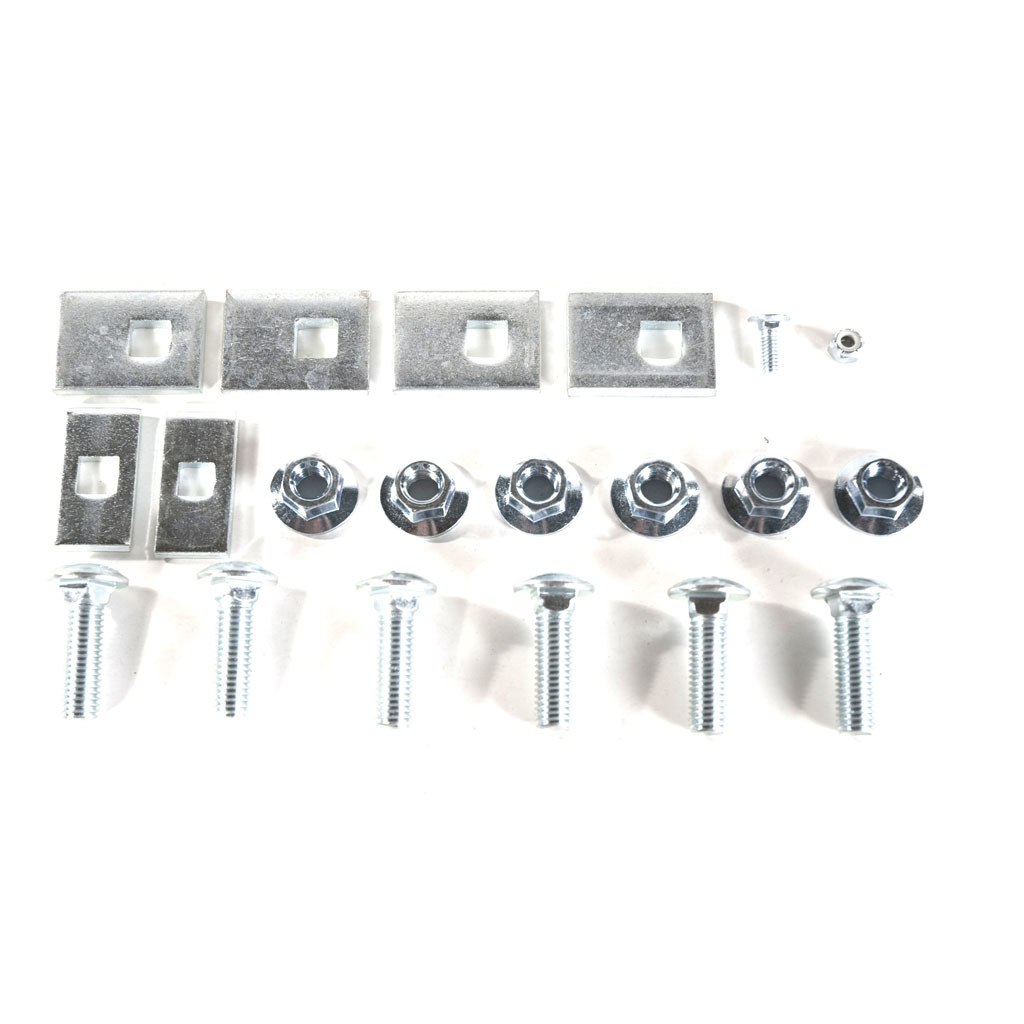

  • Includes installation hardware

Installation

Instruction sheet: PDF Download

CURT Trailer Hitch Installation Techniques


CURT Trailer Hitches
