CURT Class 1 Fixed-Tongue Trailer Hitch with 3/4″ Trailer Ball Hole #11507

$279.21

Add to Wishlist Browse Wishlist
SKU: 612314115075 Category:

Description

CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).

This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Audi 4000S Quattro sedan (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware.

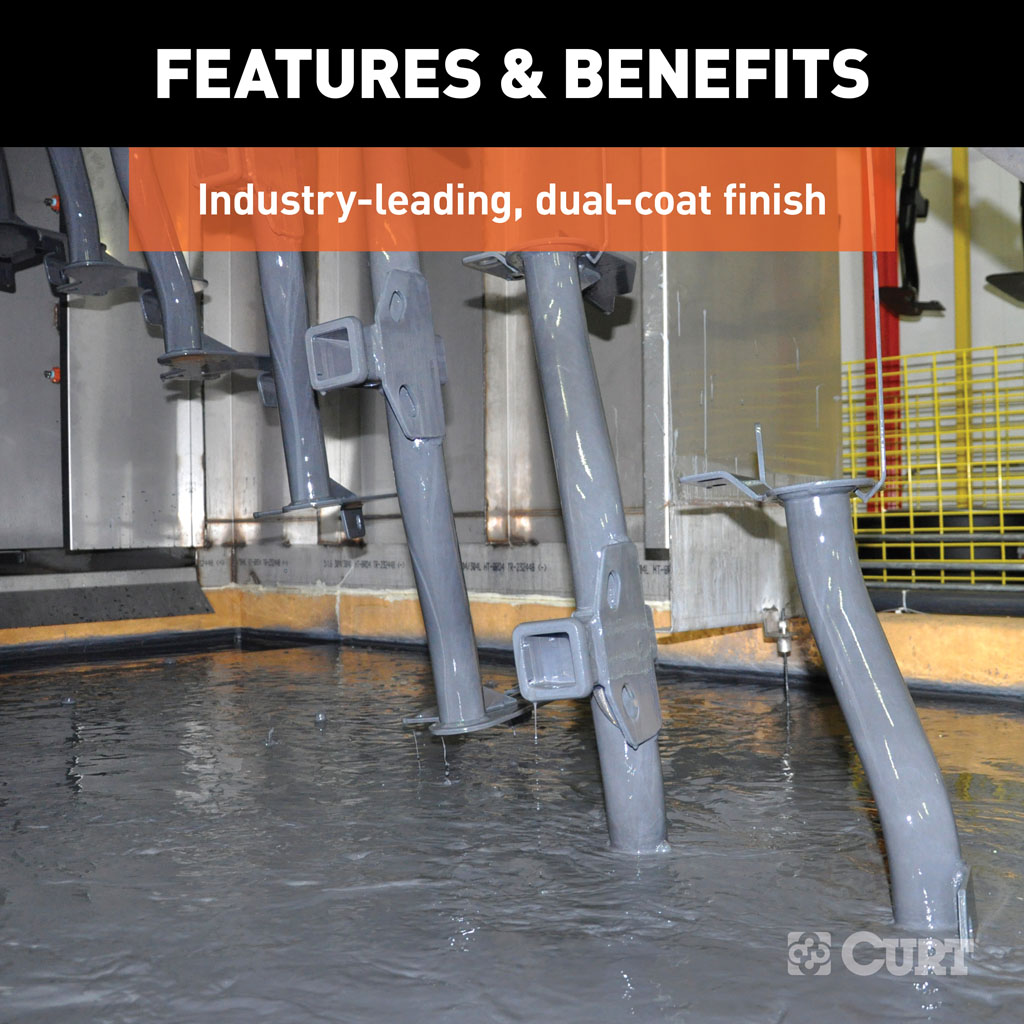

Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays. Like all CURT custom-fit receiver hitches, this class 1 hitch is made right here in the USA (may include imported hardware) and is backed by a one-year finish warranty and a limited lifetime warranty.

Details

Shipping Weight: 11.200
Product Weight: 9.000
Material: Carbon Steel
Drilling Required: Yes
Part Type: Class 1 Trailer Hitch
Ball Hole: 3/4 IN
Main Body: Flat
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size: N/A
Finish: GLOSS BLACK POWDER COAT
Weight Carrying Capacity(WC): 1,500 LB
Tongue Weight(TW): 150 LB
Weight Distribution Tongue Weight(WDTW): n/a
Weight Distribution(WD): n/a

Notes

  • Rated to 1,500 lbs. gross trailer weight and 150 lbs. tongue weight

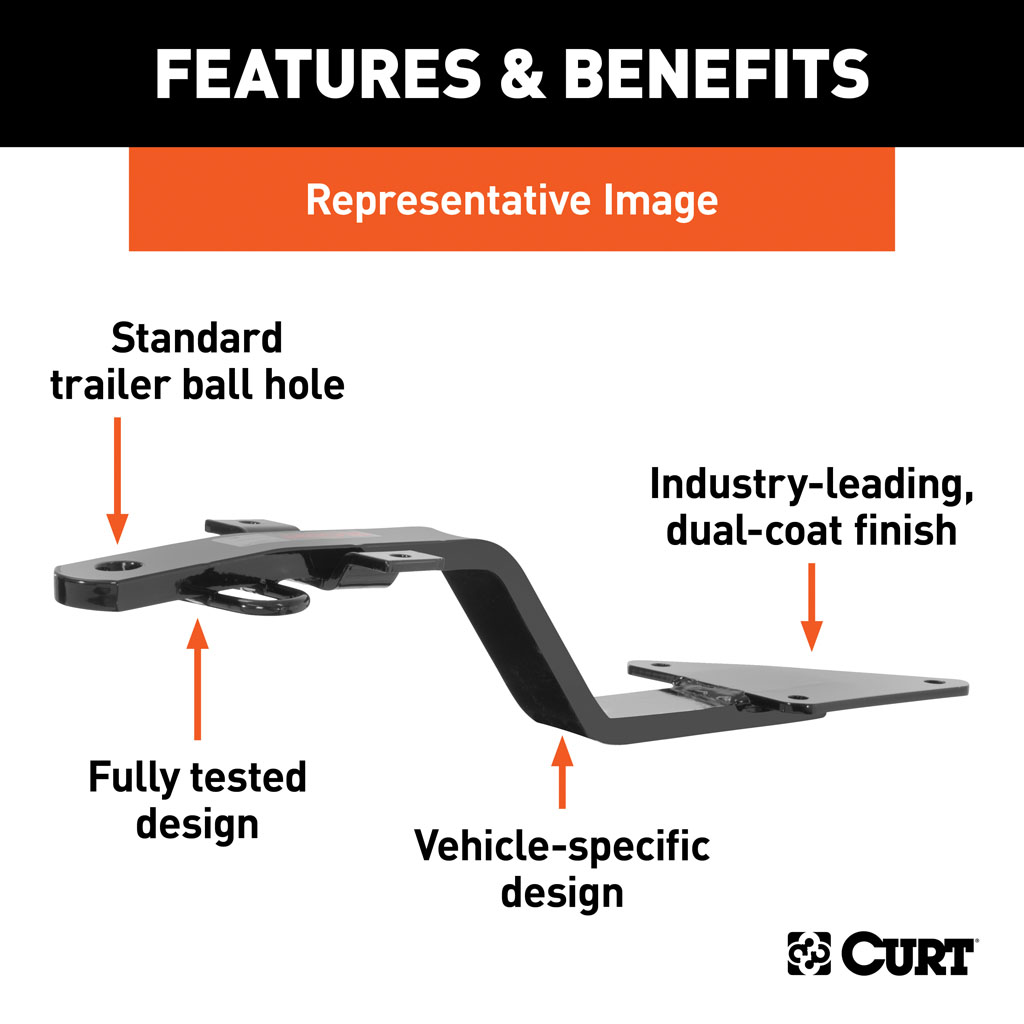

  • Engineered with a vehicle-specific design for a custom fit
  • Concealed main body for OE look and seamless integration with the vehicle

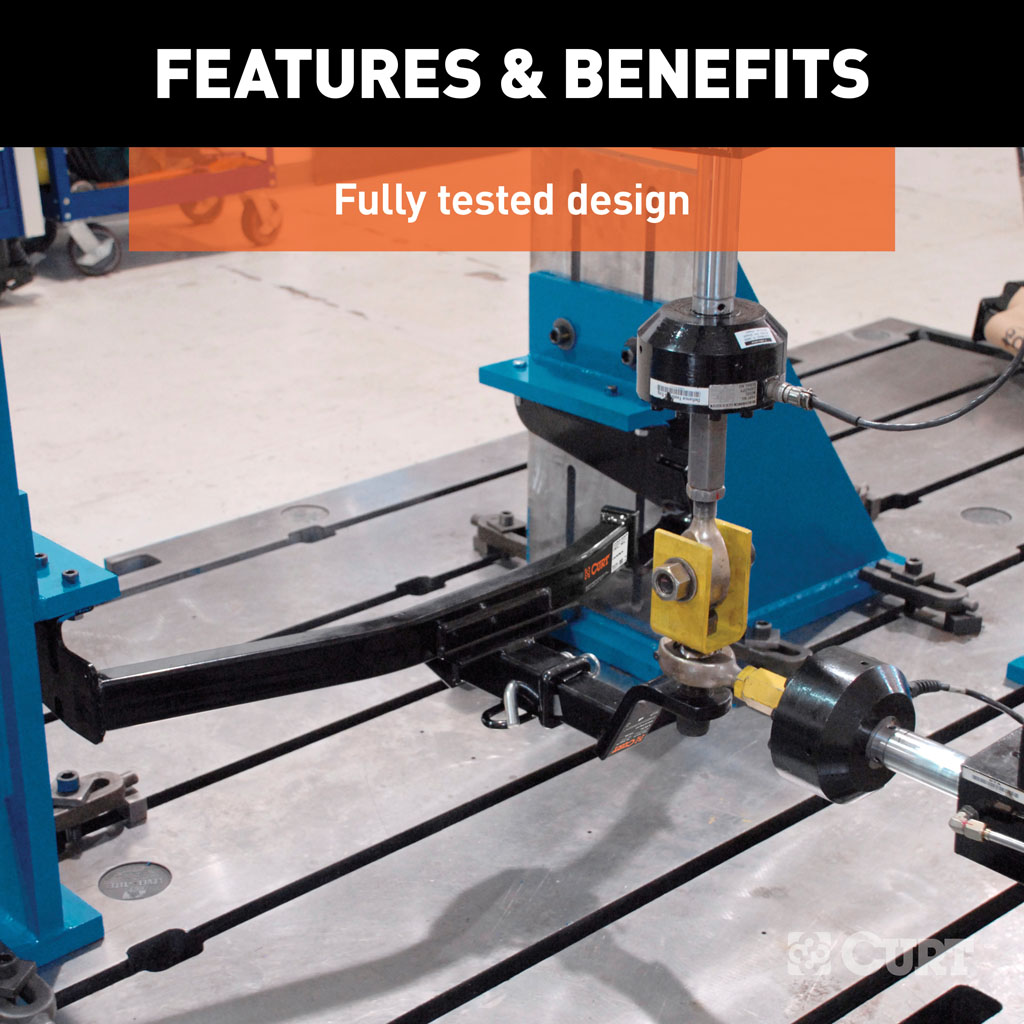

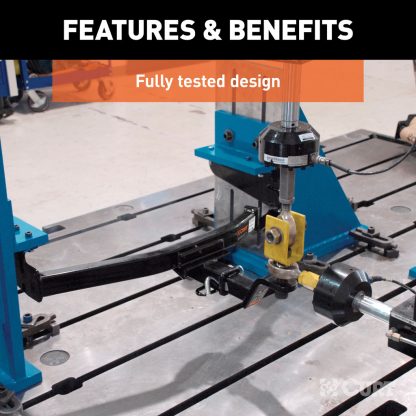

  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Fixed drawbar readily accepts a 3/4" trailer ball shank
  • Protected by a durable high-gloss black powder coat finish
  • Co-cured in a rust-resistant liquid Bonderite coating
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Made in USA (may include imported hardware)

Additional

  • Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
  • Includes installation hardware
